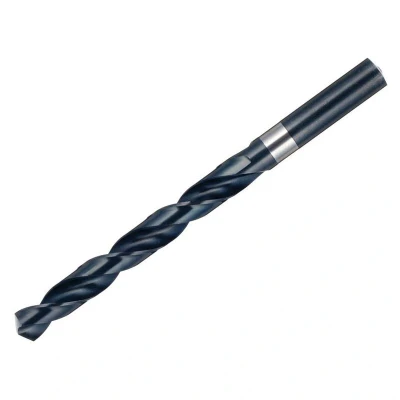

Dormer A100 HSS Jobber Drill Bit 1.75mm OL46mm WL22mm DORA100175

General description Dormer A100 Metric HSS jobber drills are designed for general-purpose engineering applications. They offer good self-centering capability on a wide range of materials and can be used both manually and with machines. The drill features a high-speed steel (HSS) construction with a right-hand cutting direction and a 118° point angle, making it suitable for drilling in steel and cast iron. Technical specifications Material: High-Speed Steel (HSS) Tip diameter: 1.75mm Working length: 22mm Overall length: 46mm Angle of tip: 118° Cutting direction: Right-hand Type: Jobber drill, DIN 338RN, ISO 235 Model: A100 Tolerance: h8 Compatibility and accessories Suitable for use in various hand and machine drilling applications Compatible with standard drill chucks and holders for HSS drills Installation Insert the drill into a compatible drill chuck or holder Ensure the drill is securely tightened before use Use appropriate speed and feed rates based on the material being drilled

Dormer A100 Metric HSS jobber drills are suitable for use in the majority of general purpose engineering applications. They have good self-centring capability on a wide range of materials and are suitable for both hand and machine use. DIN338RNBS328ISO235Tip diameter: 1.75mm.Working length: 22mm.Overall length: 46mm.PTDDORA100175
