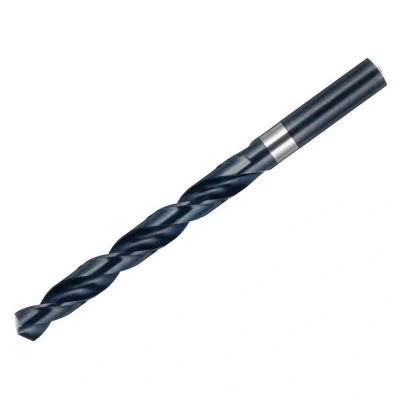

Dormer A100 HSS Jobber Drill Bit 1.90mm OL46mm WL22mm DORA100190

General description Dormer A100 Metric HSS jobber drills are designed for general-purpose engineering applications. They offer good self-centering capability on a wide range of materials and are suitable for both hand and machine use. Made from high-speed steel (HSS) and vapor-treated for durability, these drills feature a 118° point angle and a cylindrical shank for secure fitting. They are ideal for drilling in steel and cast iron. Technical specifications Tip diameter: 1.90mm Overall length: 46mm Working length: 22mm Shank diameter: 1.9mm Material: High-Speed Steel (HSS) Point angle: 118° Profile: Ground with cross-cut sharpening from 3.0mm diameter Length of the cutting edge: 22mm Depth of drilling: 4 times the diameter (4xD) Standard: DIN 338, Type N Coating: Vapor-treated for enhanced durability Compatibility and accessories Compatible with standard drill chucks and holders Suitable for use in steel and cast iron Installation Insert the drill into a compatible drill chuck or

Dormer A100 Metric HSS jobber drills are suitable for use in the majority of general purpose engineering applications. They have good self-centring capability on a wide range of materials and are suitable for both hand and machine use. DIN338RNBS328ISO235Tip diameter: 1.90mm.Working length: 22mm.Overall length: 46mm.PTDDORA100190
