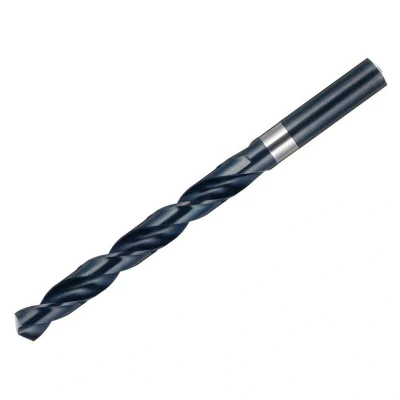

Dormer A100 HSS Jobber Drill Bit 13/64in OL86mm WL52mm DORA1001364

General description Dormer A100 series general-purpose HSS jobber drills are designed for a wide range of engineering applications. They offer good self-centering capabilities on various materials and can be used with both hand tools and machines, making them suitable for drilling in steel and castings, providing reliable performance for everyday drilling tasks. Technical specifications Tip diameter: 13/64 inch (approximately 5.16 mm) Working length: 52 mm Overall length: 86 mm Material: High-Speed Steel (HSS) Maximum tip angle: 118° Cutting profile: Cross-cut with a diameter of 3.0 mm Type: Right-hand cut, cylindrical shank Model: A100 Perforation depth: 4 times the diameter (4xD) Tolerance: h8 Compatibility and accessories Suitable for use in standard drilling machines and hand drills Compatible with steel and cast materials Installation Insert the drill into the chuck of your drill or drilling machine, ensuring it is securely tightened Use appropriate speed and feed rates based on

Dormer A100 series general purpose HSS jobber drills are suitable for use in the majority of general purpose engineering applications. They have good self-centring capability on a wide range of materials and are suitable for both hand and machine use. DIN338RNBS328ISO235Tip diameter: 13/64in.Working length: 52mm.Overall length: 86mm.PTDDORA1001364
