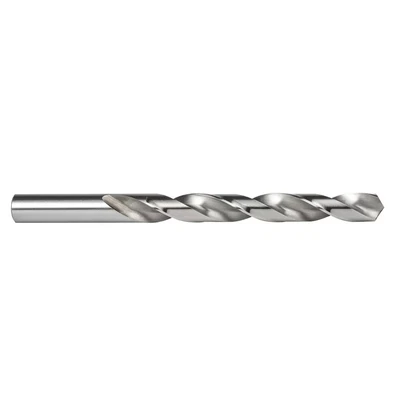

Dormer A100 HSS Jobber Drill Bit 5.00mm OL86mm WL52mm DORA100500

ManoMano

General description This is a high-quality HSS (High-Speed Steel) drill bit designed for precise and efficient drilling in metal. Dormer A100 Metric HSS jobber drills are suitable for use in the majority of general-purpose engineering applications. They have good self-centering capability on a wide range of materials and are suitable for both hand and machine use. Technical specifications Tip diameter: 5.0 mm Working length: 52 mm Overall length: 86 mm Material: High-Speed Steel Standards: DIN 338 RN, BS 328, ISO 235 Cutting profile: Cross cut with a diameter of 3.0 mm Cutting direction: Right Perforation depth: 4 times the diameter (4xD) Nominal tolerance: h8 Compatibility and accessories Compatible with standard drill chucks Suitable for use with drills that accept 5 mm bits Installation Insert the drill bit into the drill chuck and tighten securely before use Usage Use for drilling in steel and cast iron Ensure proper speed and pressure for optimal performance

Amazon

5.0mm Right handed | 118° Point Angle General Purpose Use Only DIN 338 | ISO 235 Box Quantity: 1
