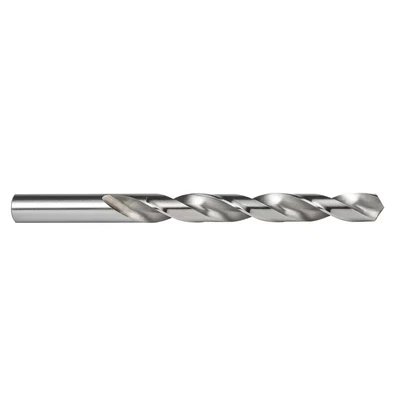

Dormer A100 HSS Jobber Drill Bit 6.40mm OL101mm WL63mm DORA100640

ManoMano

General description Dormer A100 Metric HSS jobber drills are designed for general-purpose engineering applications. They are suitable for use in a wide range of materials, offering good self-centering capabilities. These drills can be used for both hand and machine applications, making them versatile tools for standard drilling tasks in steel and cast iron. Technical specifications Tip diameter: 6.40mm Working length: 63mm Overall length: 101mm Material: High-Speed Steel (HSS) Angle of tip: 118° Shank type: Cylindrical Number of pieces per box: 10 Norm: DIN 338, Type N Coating: Dampfanlassbehandlung (steam treatment) Cutting profile: Cross-ground with a standard spiral groove Maximum drilling depth: 4 times the diameter (4xD) Compatibility and accessories Compatible with standard drill chucks and drill presses Suitable for drilling in steel and cast iron Installation Insert the drill into a compatible drill chuck or machine spindle Ensure the drill is securely tightened before use

Power Tools Direct

Dormer A100 Metric HSS jobber drills are suitable for use in the majority of general purpose engineering applications. They have good self-centring capability on a wide range of materials and are suitable for both hand and machine use. DIN338RNBS328ISO235Tip diameter: 6.40mm.Working length: 63mm.Overall length: 101mm.PTDDORA100640

Amazon

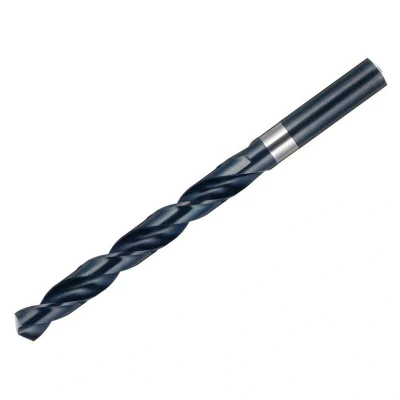

High Speed Steel (HSS) provides good hot hardness when drilling 118 degree conventional point provides easy re-grinding Steam oxide finish reduces built-up-edge and helps lubricity Patented Silver ring provides clear diameter marking For use on machines or hand held applications
