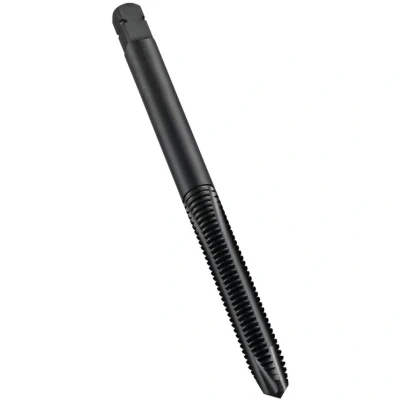

Dormer E001M2.5 Series E001 HSS E PM Spiral Point Machine Tap Metric with Steam Tempered Finish, ISO Standard, M2.5 x 0.45 mm Thread, 44.5 Length

The E001 M2.5X0.45MM Spiral Point Tap is a high-performance tool designed for precision threading in various materials. Engineered from Premium HSS-E-PM material, this tap is a powder metal high-speed cobalt variant, ensuring exceptional durability and extended tool life, making it an ideal choice for demanding applications.

Design and Features

This tap features a steam tempered finish, which significantly enhances its service life. The steam tempering process improves performance, especially when threading harder materials such as steel, stainless steel, and cast iron. With a robust construction, the E001 tap is built to withstand rigorous use while maintaining cutting efficiency.

The spiral point design of this tap is specially crafted for efficient threading of through holes, allowing chips to be pushed forward during the tapping process. This leads to cleaner holes and reduced risk of damage to the workpiece. The tap is equipped with two flutes, ensuring optimal chip removal and improved surface finish of the threaded hole.

Technical Specifications

- Class of Fit: 6H

- Dimensions Standard: ISO 529

- Finish/Coating: Steam Tempered

- Material: Cobalt High-Speed Steel

- Material Grade: M35

- Number of Flutes: 2

- Overall Length: 44.5mm

- Pitch: 0.45mm

- Shank Diameter: 2.8mm

- Square Width: 2.24mm

- Tap Type: Spiral Point

- Tapping Depth: 9.5mm

Versatility and Applications

The E001 series includes a wide selection of taps with different thread forms, making it a versatile solution for various applications. It covers various thread types including Metric, Metric Fine, UNC, UNF, and (G)BSP, catering to a broad scope of threading requirements. This makes the E001 tap the first choice for professionals in machining steel and stainless steel, while also being suitable for use with aluminum and cast iron.

In summary, the E001 M2.5X0.45MM Spiral Point Tap is an excellent choice for those looking for a reliable and efficient tapping solution. With its superior design, quality materials, and versatile application, it stands out as an invaluable tool for both general and specialized threading tasks in the machining industry. Whether you're dealing with steel, stainless steel, or other materials, this tap ensures consistent performance and longevity, making it an essential addition to any toolkit.
