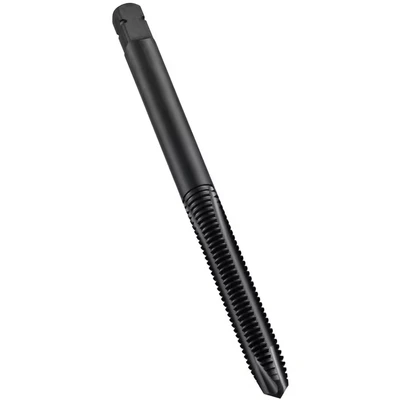

Dormer E001M6 Series E001 HSS E PM Spiral Point Machine Tap Metric with Steam Tempered Finish, ISO Standard, M6 x 1.00 mm Thread, 66 Length

The E001 M6X1.00MM Spiral Point Tap from the MTT-X Tap Series is a high-performance tool designed specifically for tackling a diverse range of materials, including steel, stainless steel, cast iron, and more. This tap is engineered to deliver exceptional threading results in both industrial and workshop settings.

Premium Quality <a class='cat-link' href='https://bigshopper.co.uk/brand/material/'>Material</a>s

Constructed from premium High-Speed Steel (HSS-E) with a cobalt composition, the tap features a M35 material grade that enhances durability and extends tool life. The steam-tempered finish significantly increases the service life of the tap, allowing for improved performance when working with harder materials. This unique treatment not only optimizes the resistance of the tap to wear and heat but also ensures high reliability in demanding applications.

Design and Functionality

The E001 series taps are designed with a spiral point geometry, making them ideal for efficient threading in through holes. This design ensures that chips are pushed forward, which minimizes the potential for clogging and allows for a cleaner and faster tapping process. With three flutes, the tap facilitates a smoother operation while reducing the risk of breakage and enhancing overall tapping performance.

Versatile Application

This tap is part of a versatile product range that adheres to both DIN and ISO standards. Available in various thread forms such as Metric, Metric Fine, UNC, and UNF, the E001 M6X1.00MM tap is suitable for a wide spectrum of applications, from general manufacturing to bespoke projects. Additionally, this tap can be used with different finishes including Bright, Steam Tempered, or Titanium Nitride Coated (TiN), catering to specific operational requirements.

Technical Specifications

- Class of Fit: 6H

- Finish/Coating: Steam Tempered

- Material: Cobalt High Speed Steel

- Material Grade: M35

- Number of Flutes: 3

- Overall Length: 66.0mm

- Pitch: 1.00mm

- Shank Diameter: 6.3mm

- Square Width: 5.0mm

- Tapping Depth: 26.0mm

- Thread Direction: Right-hand

<a class='cat-link' href='https://bigshopper.co.uk/brand/ideal/'>Ideal</a> for Professionals

The E001 M6X1.00MM Spiral Point Tap is the first-choice tool for professionals seeking reliability and efficiency when tapping steels and stainless steels, while also being adept at threading aluminum and cast irons. Whether for high-volume production runs or precision engineering tasks, this tap stands out as an indispensable tool in any machinist's toolkit, ensuring high-quality results with every use.
