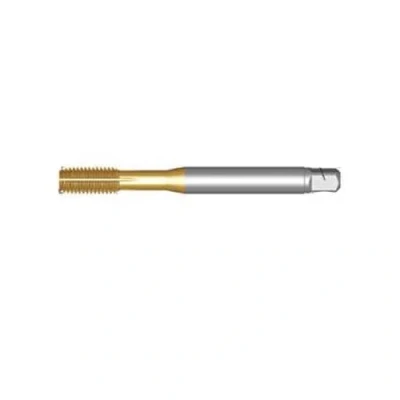

Dormer E294 M6X1 HSS E Fluteless Machine Tap with Oil Grooves TiN Coated

ManoMano

Dormer: E294 M8X1.25 HSS-E Fluteless Machine Tap with Oil Grooves TiN Coated High performance fluteless taps made from premium grade high speed cobalt steel. Chip-free threading operation produces a stronger thread than with cutting taps. Thread profile generates less torque, resulting in longer tool life and a smoother finished thread. Extremely versatile - capable of threading both through and blind holes in a wide range of engineering materials. Titanium Nitride (TiN) coating for reduced friction and longer tool life. Features Manufactured to DIN 2174 Oil grooves facilitate coolant flow to machining area Metric size range M3 to M16 Tapping tolerance: 6HX 3.5xD MPN: 6305751 EAN: 7320760663837 E294 M8X1.25 HSS-E Fluteless Machine Tap with Oil Grooves TiN Coated Attributes: Class of Fit: 6HX Dimensions Standard: DIN 2174 Finish/Coating: TiN Lead: C 2-3.5 MFR Part No.: E294M8 Material: Cobalt High Speed Steel Material Grade: M35 Number of Flutes: 5 Overall Length: 90.0mm Pitch: 1.25

Zoro Tools

High performance fluteless taps made from premium grade high speed cobalt steel. Chip-free threading operation produces a stronger thread than with cutting taps. Thread profile generates less torque, resulting in longer tool life and a smoother finished thread. Extremely versatile - capable of threading both through and blind holes in a wide range of engineering materials. Titanium Nitride (TiN) coating for reduced friction and longer tool life. Features Manufactured to DIN 2174 Oil grooves facilitate coolant flow to machining area Metric size range M3 to M16 Tapping tolerance: 6HX 3.5xD

Amazon

High Speed Cobalt (HSS-E) increased hardness and toughness, improved strength and longer tool life Fluteless design with optimized polygonal form to generates lower torque when thread forming Oil grooves to help lubricate and reduce the high pressures generated when fluteless tapping TiN Coating increases surface hardness, wear resistance and improves tool life due to reduced friction No creation of swarf allows higher tapping speeds
