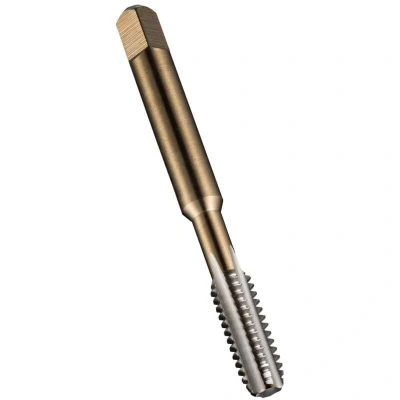

Dormer E500 HSS Coarse Tap Straight Flute 10mm Taper DORE500100T

General description This Dormer E500 HSS Coarse Tap is a high-quality hand tap designed for creating internal threads in various materials. It features a metric ISO M10 thread with a 1.50 mm pitch and a 6H tolerance class. Made from high-speed steel (HSS) with a smooth, polished surface, it ensures durability and precise threading. This versatile tap can be used for both through and blind holes in construction steel and carbon steel. Technical specifications Thread size: M10 with 1.50 mm pitch Thread type: ISO metric Thread length: 18 mm Overall length: 80 mm Shaft diameter: 10 mm Shaft shape: Cylindrical with a square drive of 8 mm Material: High-speed steel (HSS) Surface finish: Polished Tolerance class: 6H Number of cutting edges: 3 Cutting direction: Right-hand Thread type: Pass-through and blind threads Compatibility and accessories Compatible with standard ISO 529 threading standards Requires compatible tap wrench or handle for operation Installation Insert the tap into a

Dormer E500 straight flute taps are the only type of taps that can be used by hand but they may also be used in a machine if required. Extremely versatile can tap through or blind holes in most materials. When tapping blind holes straight flute taps should be used in sets. The three taps which form a set are known by more than one name. 1. Taper or First tap2. Second or Intermediate tap3. Bottoming third or plug tap. Metric coarse straight flute taps. Tolerance: Class 2 for 6H FitSurface treatment: BrightMaterial: HSS High Speed SteelChamfer No: 1 2 and 3 Serial no 4 and 5Flute Geometry: Straight Flutes ISO529Size 10.0mm x 1.5 taperPTDDORE500100T
