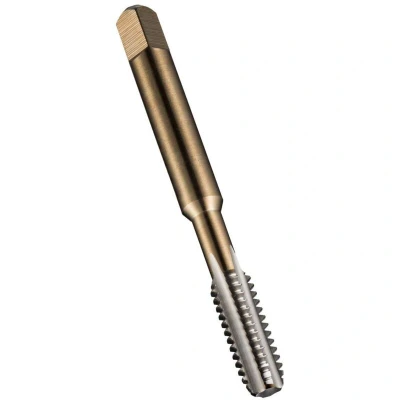

Dormer E500 HSS Coarse Tap Straight Flute 6mm Taper DORE50060T

General description This Dormer E500 HSS Coarse Tap is designed for cutting metric ISO M6 threads with a 1.00 mm pitch. It is suitable for creating internal threads in various materials, including construction steel and carbon steel. The tap features a durable HSS (High-Speed Steel) construction with a polished surface for smooth operation and can be used for both through and blind holes. Technical specifications Thread type: Metric ISO M6 Thread pitch: 1.00 mm Thread length: 13 mm Overall length: 66 mm Shank diameter: 6.3 mm Square drive size: 5.0 mm Material: High-Speed Steel (HSS) Surface finish: Polished Number of cutting edges: 3 Cutting direction: Right-hand Tolerance: Class 2 for 6H Fit Flute Geometry: Straight Flutes ISO 529 Compatibility and accessories Compatible with manual tap wrenches Compatible with machine tap holders that fit a 5.0 mm square drive Installation Insert the tap into a suitable tap wrench or machine holder with a 5.0 mm square drive Secure the tap firmly

Dormer E500 straight flute taps are the only type of taps that can be used by hand but they may also be used in a machine if required. Extremely versatile can tap through or blind holes in most materials. When tapping blind holes straight flute taps should be used in sets. The three taps which form a set are known by more than one name. 1. Taper or First tap2. Second or Intermediate tap3. Bottoming third or plug tap. Metric coarse straight flute taps. Tolerance: Class 2 for 6H FitSurface treatment: BrightMaterial: HSS High Speed SteelChamfer No: 1 2 and 3 Serial no 4 and 5Flute Geometry: Straight Flutes ISO529Size 6.0mm x 1.0 taperPTDDORE50060T
