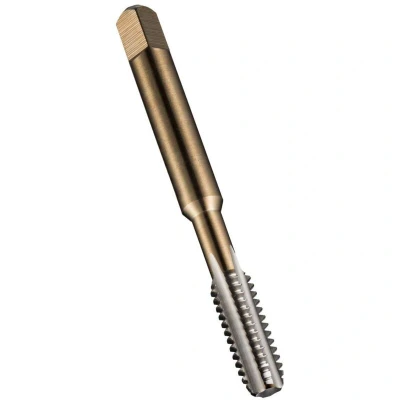

Dormer E500 HSS Coarse Tap Straight Flute 12mm Taper DORE500120T

General description This Dormer E500 HSS Coarse Tap is designed for creating internal threads in metal. It features a metric ISO M12 thread with a 1.75 mm pitch and a 6H tolerance class. Made from high-speed steel (HSS) with a polished surface, it is suitable for cutting through holes in construction steel and carbon steel. The tap can be used by hand or in a machine and is versatile enough to tap through or blind holes in most materials. Technical specifications Thread size: M12 Pitch: 1.75 mm Thread type: Metric ISO Tolerance class: 6H Shank diameter: 9 mm Shank shape: Cylindrical with square drive (7.1 mm) Total length: 89 mm Cutting length: 22 mm Number of cutting edges: 3 Cutting direction: Right-hand Material: High-speed steel (HSS) Surface finish: Polished Compatibility and accessories Compatible with standard ISO M12 taps Suitable for use in construction steel and carbon steel Designed for creating internal threads in various metal components Installation Insert the tap into a

Dormer E500 straight flute taps are the only type of taps that can be used by hand but they may also be used in a machine if required. Extremely versatile can tap through or blind holes in most materials. When tapping blind holes straight flute taps should be used in sets. The three taps which form a set are known by more than one name. 1. Taper or First tap2. Second or Intermediate tap3. Bottoming third or plug tap. Metric coarse straight flute taps. Tolerance: Class 2 for 6H FitSurface treatment: BrightMaterial: HSS High Speed SteelChamfer No: 1 2 and 3 Serial no 4 and 5Flute Geometry: Straight Flutes ISO529Size 12.0mm x 1.75 taperPTDDORE500120T
