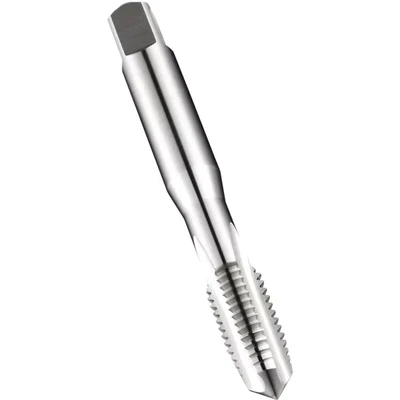

Dormer E500 HSS Straight Flute Hand Tap Metric with Bright finish, ISO standard, Single Pack
Description
ManoMano
Dormer: E500 M4X0.70MM Plug Tap Series E500 HSS straight flute plug taps are ideal for hand or machine tapping in a wide variety of materials. The HSS construction offers excellent strength and rigidity whilst cutting. Features and Benefits HSS with bright finish for excellent cutting stength Heat and wear resistant for longer tool lifespan Straight flute for through or blind holes Typical Applications Through holes Blind holes Standards Manufactured to ISO 529 Notes Sizes M1 to M56 Plug - 1-2 pitch chamfer length MPN: 5976774 EAN: 7320760094655 E500 M4X0.70MM Plug Tap Attributes: Chamfer: Plug Class of Fit: 6H Dimensions Standard: ISO 529 Finish/Coating: Bright MFR Part No.: E500M4NO3 Material: High Speed Steel Number of Flutes: 3 Overall Length: 53.0mm Pitch: 0.70 Series: E500 Shank Diameter: 4mm Square Width: 3.2mm Tap Type: Straight Flute Tapping Depth: 14.0mm Thread Direction: Right Hand Thread Length: 14mm Thread Size: M4 Thread Standard: Metric Coarse
Description
(3)
Dormer: E500 M4X0.70MM Plug Tap Series E500 HSS straight flute plug taps are ideal for hand or machine tapping in a wide variety of materials. The HSS construction offers excellent strength and rigidity whilst cutting. Features and Benefits HSS with bright finish for excellent cutting stength Heat and wear resistant for longer tool lifespan Straight flute for through or blind holes Typical Applications Through holes Blind holes Standards Manufactured to ISO 529 Notes Sizes M1 to M56 Plug - 1-2 pitch chamfer length MPN: 5976774 EAN: 7320760094655 E500 M4X0.70MM Plug Tap Attributes: Chamfer: Plug Class of Fit: 6H Dimensions Standard: ISO 529 Finish/Coating: Bright MFR Part No.: E500M4NO3 Material: High Speed Steel Number of Flutes: 3 Overall Length: 53.0mm Pitch: 0.70 Series: E500 Shank Diameter: 4mm Square Width: 3.2mm Tap Type: Straight Flute Tapping Depth: 14.0mm Thread Direction: Right Hand Thread Length: 14mm Thread Size: M4 Thread Standard: Metric Coarse
Zoro ToolsSeries E500 HSS straight flute plug taps are ideal for hand or machine tapping in a wide variety of materials. The HSS construction offers excellent strength and rigidity whilst cutting. Features and Benefits HSS with bright finish for excellent cutting stength Heat and wear resistant for longer tool lifespan Straight flute for through or blind holes Typical Applications Through holes Blind holes Standards Manufactured to ISO 529 Notes Sizes M1 to M56 Plug - 1-2 pitch chamfer length
AmazonBright finish - prevents work piece material from sticking to the cutting edge Premium HSS material - High Speed Steel provides superior performance and extended tool life Straight Flute Design - Designed for efficient threading of through and blind holes ISO Standard - Manufactured conforming to the International Standardisation Organisation Versatile product - Can be used for hand tapping many materials including steels, aluminium, stainless steel and cast iron
Product specifications
| Brand | Dormer |
|---|---|
| EAN |
|
| Material |
|
| Size |
|
| MPN |
|
