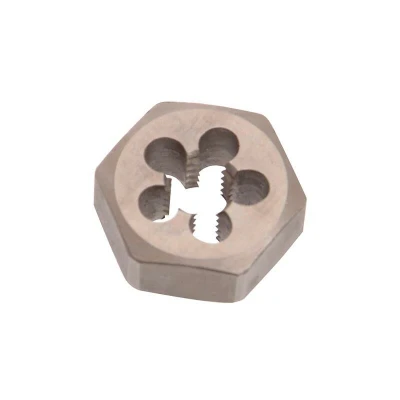

Dormer F302 HSS Die Nuts Metric Coarse Thread 16.0 x 2.00 Pitch DORF302M16

ManoMano

General description Die nuts are essential tools used to reclaim worn or damaged threads in various materials. The Dormer F302 16MM HSS Die Nut is specifically designed for the reclamation of screw threads, making it suitable for repairing or creating internal threads in metals such as construction steel, carbon steel, stainless steel, gray cast iron, ductile iron, and brass. This hexagonal threading tap conforms to the BS 1127:1950 standard and features a polished high-speed steel surface for enhanced durability and precision. Technical specifications Thread type: ISO metric M16 Pitch: 2.00 mm Tolerance class: 6g Material: High-Speed Steel (HSS) Hex Width: 1.30 in Thickness: 5/8 in Surface finish: Polished Dimensions Standard: BS 1127 Series: F302 Compatibility and accessories Compatible with steel, stainless steel, gray cast iron, ductile iron, and brass Suitable for repairing or creating internal threads in various metals Installation Use with a compatible tap wrench or threading

Amazon

Bright finish - prevents work piece material from sticking to the cutting edges Premium HSS material - high speed steel provides superior performance and extend tool life Die Nut - designed for repairing damaged external threads by re-cutting the original thread form 6g tolerance - designed to create accurate screw threads to 6g tolerance Hand die - should only be used for repairing threads by hand with the appropriate imperial size spanner, Weight: 0.18 pounds, Manufacturer: Dormer
