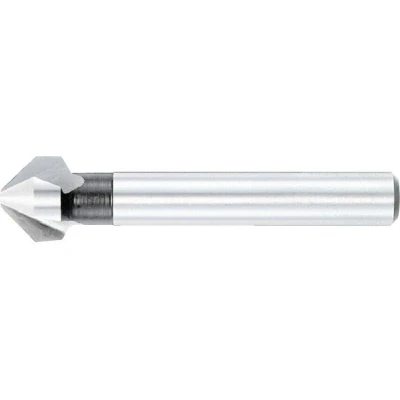

Dormer G136 HSS Straight Shank Countersink 90 16.50mm DORG1361650

ManoMano

General description This is a 90° countersink drill bit made of high-speed steel (HSS) designed for creating conical seats for countersunk screws. It features a cylindrical shank and a pointed tip, suitable for various materials including steel, aluminum, copper, and plastics. The tool conforms to DIN 335 C standards and is available in multiple sizes to accommodate different screw diameters. Technical specifications Material: High-Speed Steel (HSS) Standard: DIN 335 C Angle: 90° Cutting direction: Right-handed Surface treatment: Bright finish Design: Tapered conical seat for countersunk screws Maximum diameter options: 6.3 mm to 25 mm Minimum hole diameter: 1.5 mm to 3.8 mm depending on size Head length: 5.5 mm to 15.5 mm depending on size Shank length: 45 mm to 67 mm depending on size Size: 16.50 mm Compatibility and accessories Compatible with standard drill chucks for HSS tools Suitable for use with drills and drill presses Installation Insert the countersink bit into a compatible

Amazon

90 degrees Angle - designed to chamfer holes to accommodate standard fasteners with 90 degree heads Premium HSS material - can be used for chamfering holes in many materials including steel, aluminium, stainless steels Reduced plain shank - allows large diameter countersinks to be held in standard holders and chucks Bright finish - prevents work piece material from sticking to the cutting edge Versatile product - can be used in both machine and hand held applications

Power Tools Direct

Dormer G136 HSS Straight Shank 90° Countersink for production of 90° countersinks in most materials which can also be used as a de-burring tool. Has a bright finish 3 flute ground all over. Other types available on request (MTS 60°/82°/100° Coated).Size: 16.50mm.PTDDORG1361650
