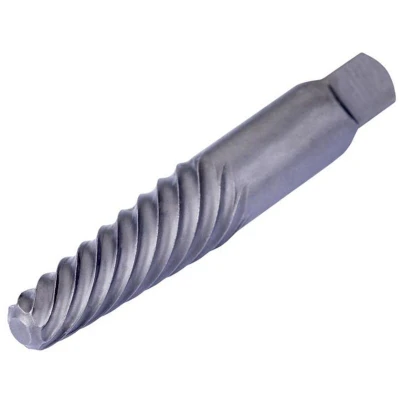

Dormer M9003 Screw Extractor M8 M12

General description The Dormer M9003 Screw Extractor is designed for the effective removal of broken right-handed bolts and screws from threaded holes without causing damage to the threads. This tool operates counter-clockwise and is suitable for bolt sizes ranging from M8 to M12. Technical specifications Bolt Size: M8 - M12 Drill Size for Low/Medium Tensile Screws: 4mm Drill Size for High Tensile Screws (+75 tons/sq.inch): 4.2mm Bolt Size Imperial: 5/16 - 7/16in Drill Size for Low/Medium Tensile Screws (Imperial): 5/32in Drill Size for High Tensile Screws (+75 tons/sq.inch) (Imperial): 11/64in Cutting Diameter Step: 3.18mm Cutting Diameter Second Cutting Step (DC_2): 6.4mm Clamping Width (WSC): 4.8mm Clamping Length (LSC): 7.5mm Overall Length (OAL): 68.7mm Net Weight: 14g Installation It is necessary to drill a guide hole of proper size before using the extractor.

The Dormer M900 Screw Extractors can be used counter-clockwise to remove broken right-handed bolts & screws from threaded holes without damaging threads. It’s necessary to drill a guide hole of proper size before using the extractor.1 x Dormer M9003 Screw Extractor M8-M12Specifications:Bolt Size: M8 - M12Drill Size for Low/Medium Tensile Screws: 4mmDrill Size for High Tensile Screws (+75 tons/sq.inch): 4.2mmBolt Size Imperial: 5/16 - 7/16inDrill Size for Low/Medium Tensile Screws: 5/32inDrill Size for High Tensile Screws (+75 tons/sq.inch): 11/64inCutting Diameter Step: 3.18mmCutting Diameter Second Cutting Step (DC_2): 6.4mmClamping Width (WSC): 4.8mmClamping Length (LSC): 7.5mmOverall Length (OAL): 68.7mmNet Weight: 14g.PTDDORM9003
