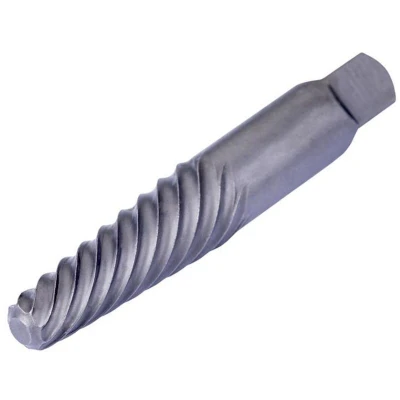

Dormer M9004 Screw Extractor M12 M14

General description The Dormer M9004 Screw Extractor is designed for the effective removal of broken right-handed bolts and screws from threaded holes without causing damage to the threads. It operates counter-clockwise and is suitable for bolt sizes ranging from M12 to M14. Technical specifications Bolt Size: M12 - M14 Drill Size for Low/Medium Tensile Screws: 5.5mm Drill Size for High Tensile Screws (+75 tons/sq.inch): 6mm Bolt Size Imperial: 7/16 - 9/16in Drill Size for Low/Medium Tensile Screws (Imperial): 7/32in Drill Size for High Tensile Screws (+75 tons/sq.inch) (Imperial): 15/64in Cutting Diameter Step: 4.37mm Cutting Diameter Second Cutting Step (DC_2): 8mm Clamping Width (WSC): 6mm Clamping Length (LSC): 8mm Overall Length (OAL): 76.7mm Net Weight: 24.7g Installation It is necessary to drill a guide hole of proper size before using the extractor.

The Dormer M900 Screw Extractors can be used counter-clockwise to remove broken right-handed bolts & screws from threaded holes without damaging threads. It’s necessary to drill a guide hole of proper size before using the extractor.1 x Dormer M9004 Screw Extractor M12-M14Specifications:Bolt Size: M12 - M14Drill Size for Low/Medium Tensile Screws: 5.5mmDrill Size for High Tensile Screws (+75 tons/sq.inch): 6mmBolt Size Imperial: 7/16 - 9/16inDrill Size for Low/Medium Tensile Screws: 7/32inDrill Size for High Tensile Screws (+75 tons/sq.inch): 15/64inCutting Diameter Step: 4.37mmCutting Diameter Second Cutting Step (DC_2): 8mmClamping Width (WSC): 6mmClamping Length (LSC): 8mmOverall Length (OAL): 76.7mmNet Weight: 24.7g.PTDDORM9004
