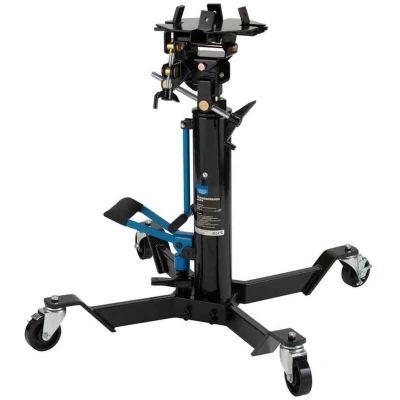

Draper 08557 Evolution Vertical Transmission Jack, 500kg

General description This vertical transmission jack is designed for lifting and supporting heavy loads in vehicle maintenance and industrial applications. It features a telescopic twin-stage ram with a low entry height, allowing access in tight spaces. The jack offers smooth, hands-free operation via a foot pedal and an adjustable saddle to accommodate various components. It tilts in all directions—forward, backward, and side-to-side—to facilitate precise positioning. The ratchet saddle claws enable quick and secure load clamping, while two non-marking ratchet straps provide additional support. Equipped with four large nylon castors, it ensures quiet, smooth movement without floor damage. A side-mounted T-handle improves maneuverability, and an overload safety valve ensures safe operation. Technical specifications Capacity: 500kg Minimum height: 902mm Maximum height (stage 1): 1,387mm Maximum height (stage 2): 1,891mm Saddle type: Adjustable Base dimensions: 290 x 290mm Castor
