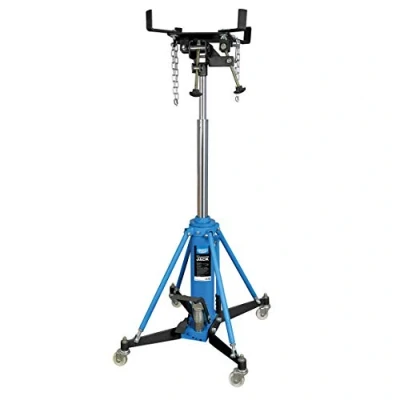

Draper Vertical Transmission Jack, 1000kg

ManoMano

General description This hydraulic vertical transmission jack is designed for professional and DIY use, offering a safe and efficient way to lift and position heavy components such as gearboxes. It features a telescopic twin-stage ram for adjustable height and a fully adjustable saddle to accommodate various sizes. The jack is equipped with safety features including a safety overload valve and a lowering control system for precise and secure lowering of loads. Its user-friendly design includes twin foot pedals for hands-free operation, chain straps for added support, and adjustable supporting struts for enhanced stability. The nylon wheels ensure quiet, smooth movement without damaging workshop floors, while the side-mounted handle improves maneuverability. Technical specifications Capacity: 1,000 kg Minimum height: 940 mm Maximum height stage 1: 1,430 mm Maximum height stage 2: 1,940 mm Castor diameter: 75 mm Base size: 740 x 640 mm Saddle: Fully adjustable Chain length: 1,495 mm

Electrical World

Expert Quality, hydraulic vertical transmission jack with a telescopic twin stage ram. Fitted with a lowering control system (LCS) which safely lowers the load precisely into position and the safety overload valve provides added user protection. Operated via the twin position and 'Quick Lift' foot pedal for hands - free operation and attached with chain straps for added support and adjustable supporting struts for increased stability. The nylon wheels provide a quieter and smoother operation whilst preventing damage to workshop floors and the side - mounted handle aids positioning and increases manoeuvrability. The fully adjustable saddle can accept a wide variety of gearboxes/components and the forward, backward and side - to - side tilt features aids the user further.

Amazon

Max capacity of 1,000kg Hands-free operation and safety overload Fully adjustable saddle to accommodate a variety of gearboxes/components Sturdy nylon wheels Draper 12 months parts and labour warranty, Weight: 175.26749829 pounds, Manufacturer: Draper
