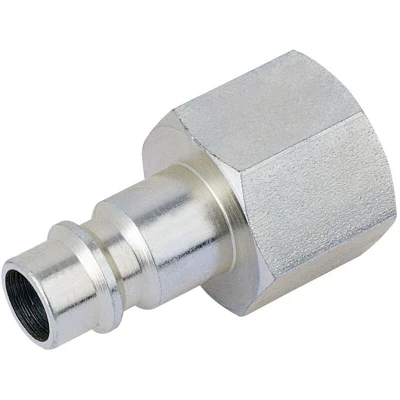

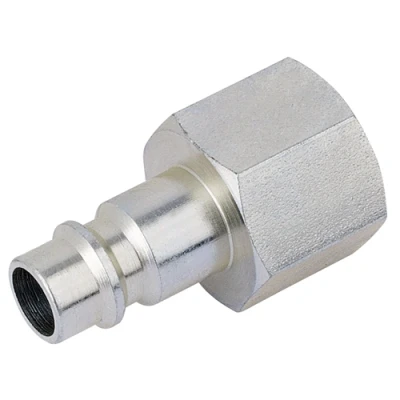

Draper 3/8" BSP Female Nut PCL Euro Coupling Adaptor (Sold Loose)

ManoMano

General description This is a heavy-duty high-flow connector designed for demanding applications. It is tested to withstand over 1 million cycles, ensuring durability and reliability. The connector is compatible with most popular European and international adaptor profiles, such as Cejn and Rectus. Made from hard-wearing steel and zinc passivated to significantly improve corrosion resistance, it is suitable for various industrial and professional uses. Technical specifications Flow capacity at 6 bar inlet with 0.5 bar pressure drop: 78 cfm (2200 L/min) Maximum working pressure: 500 psi (35 bar) Test pressure: 725 psi (50 bar) Maximum burst pressure: 2030 psi (140 bar) Temperature range: -40°C to 100°C Nominal flow diameter: 7.4 mm Compatibility and accessories Connects to most popular European and international adaptor profiles, including Cejn and Rectus Installation Sold loose, suitable for quick and secure connection to compatible fittings Usage Designed for heavy-duty, high-flow

Electrical World

For heavy duty high flow applications
