Draper Expert Hydraulic Floor Press, 30 Tonne

ManoMano

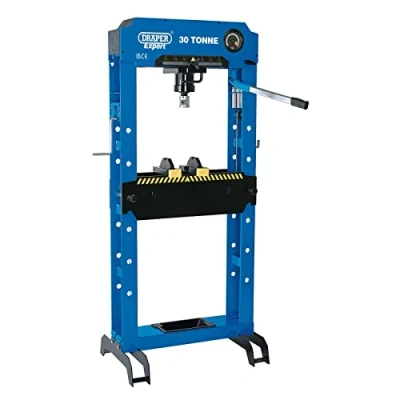

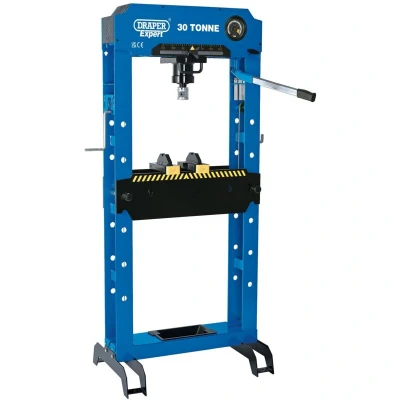

General description This is a robust hydraulic floor press with a 30-tonne capacity, designed for precise pressing tasks. It features a sliding ram and a sturdy one-piece frame for enhanced stability. The press is equipped with a manual hand pump for hydraulic operation and includes various accessories for versatile use. Technical specifications Capacity: 30 tonnes Gauge diameter: 100mm Ram stroke: 220mm Ram scale: 145mm - 0mm - 145mm Ram diameter: 50mm Table height adjustment range: 25-850mm Overall height: 1800mm Frame dimensions: (H) 1685 x (W) 600 x (D) 148mm Net weight: 157kg Compatibility and accessories Supplied with eight press pins ranging from 2 to 15 tonnes Includes two flat V-shaped pressing blocks Installation The press features adjustable table heights that can be set within the 25-850mm range The table can be lifted or lowered using a built-in winch for easy positioning Usage Operate the hydraulic system manually using the hand pump The sliding ram allows for precise

Electrical World

Robust hydraulic 30 tonne floor press with sliding ram for precise pressing. Fitted with hand pump for manual hydraulic operation. There are 12 adjustable table heights with a working range between 25-850mm. The table can be lifted or lowered using a winch. Robot welding one-piece frame for increased stability. There are dustproof covers fitted to the top of the frame to prevent dust entering the pump and ram, which helps to increase their service life. There is a removable parts tray located in the frame base. Supplied with eight press pins ranging from 2-15 tonnes and two flat v-shaped pressing blocks.

Amazon

Sliding ram Rack and pinion table Storage tray located in the base frame, which can be removed Supplied with press pins Draper 12 months parts and labour warranty
