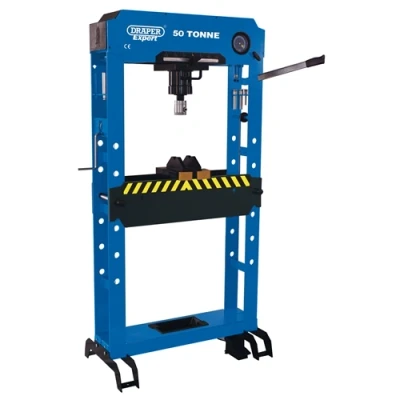

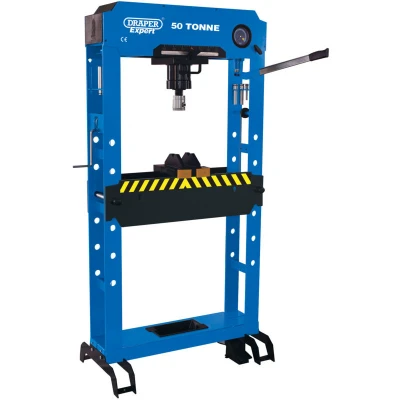

Draper Pneumatic/Hydraulic Floor Press, 50 Tonne

ManoMano

General description This is a high-quality, professional-grade floor press designed for both pneumatic and manual operation with a capacity of 50 tonnes. It features a movable cylinder for versatile use and comes with essential accessories including a pin set and two V blocks for working on cylindrical workpieces. The press is equipped with a two-stage adjustable working table and built-in storage for the pin set, ensuring convenience and efficiency during use. Technical specifications Capacity: 50 tonnes Overall Height: 1900mm Overall Width: 930mm Table Depth: 200mm Table Width: 750mm Minimum height from ram to table: 80mm Maximum height from ram to table: 780mm Ram stroke: 215mm Compatibility and accessories Supplied with a set of pins for various applications Includes two V blocks suitable for cylindrical workpieces Installation Delivered assembled and ready for use, mounted on a pallet for easy transportation. Usage Suitable for pressing, forming, or shaping tasks requiring high

Electrical World

Expert Quality, pneumatic and manual 50T floor press with movable cylinder. Supplied with pin set and two V blocks for working on cylindrical workpieces. Fitted with two stage working table adjustment and built in pin set storage. Carton packed on pallet.
