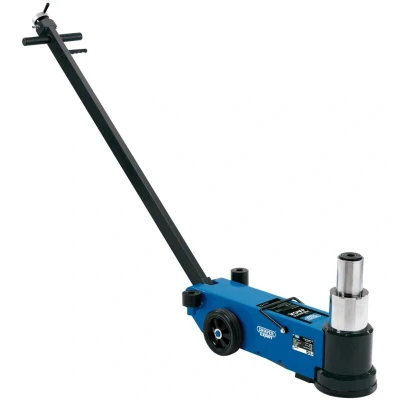

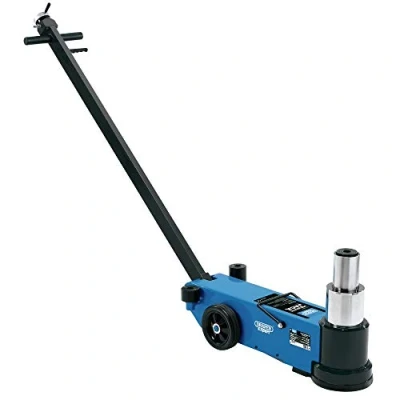

Draper Pneumatic Jack, 50 Tonne

General description This portable and compact twin-stage pneumatic jack is designed for heavy-duty lifting, capable of lifting up to 50 tonnes. It features a three-stage adjustable ergonomic handle with safety features such as a "Slow Down" valve and a "Self-Return" switch for safer and easier operation. The jack is equipped with industrial-quality seals for durability, a safety overload valve, and twin rubber-coated wheels that ensure quieter, smoother operation while protecting garage floors. Technical specifications Capacity stage 1: 50 tonnes (50,000kg) Capacity stage 2: 25 tonnes (25,000kg) Minimum height: 215mm Maximum height stage 1: 450mm (including extensions) Maximum height stage 2: 564mm (including extensions) Lift height stage 1: 115mm Lift height stage 2: 114mm Operating air pressure: 9–12 BAR (130–174 psi) Air consumption: 11.5 cfm Air inlet: 1/4 BSP Wheel diameter: 165mm Wheel width: 42.5mm Saddle diameter: 70mm Handle length: 1380mm Chassis size: 805 x 200 x 215mm Net

Expert Quality portable and compact twin stage pneumatic jack capable of lifting 50 Tonnes. The 3 stage adjustable ergonomic handle is fixed with a Slow Down" valve and a "Self-Return" switch for increased safety and easy use. Fitted with industrial quality seals prolonging the life of the jack a safety overload valve and twin rubber coated wheels for a quieter and smoother operation whilst also preventing damage to garage floors and improving manoeuvrability. Supplied with 45mm and 75mm height lift extensions and a 1/4" BSP airline connector. Manufactured tested and certified to the current EN1494 standard.PTDDRPDIR02081"
