Draper Pneumatic Long Chassis Low Profile Jack, 40 Tonne

DRAPER

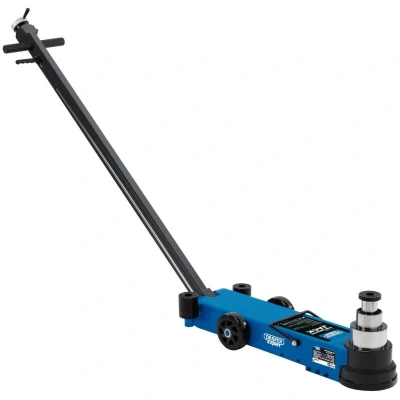

Draper Pneumatic Long Chassis Low Profile Jack, 40 Tonne

Prices from

10.98

Featured

	£ 10.98	To Shop
	£ 1,314.62	To Shop
	£ 1,314.62	To Shop

Description

ManoMano General description This is an expert-quality, long chassis, low-profile pneumatic jack designed for heavy-duty lifting. It features a compact entry height of 125mm and a total reach of 2210mm, capable of lifting up to 40 tonnes. The jack is equipped with a three-stage adjustable ergonomic handle, safety features, and industrial-grade seals for durability and safety. It includes lift extensions and a standard airline connector for versatile use in professional and industrial settings. Technical specifications Capacity: 40 tonnes (stage 1), 20 tonnes (stage 2), 10 tonnes (stage 3) Minimum height: 125mm Maximum height: 302mm (stage 1), 347mm (stage 2), 396mm (stage 3) (including extensions) Lift height: 57mm (stage 1), 45mm (stage 2), 49mm (stage 3) Operating air pressure: 9–12 BAR (130–174 PSI) Air consumption: 11.5 CFM Air inlet: 1/4" BSP Wheel diameter: 125mm Wheel width: 47.5mm Saddle diameter: 70mm Extensions included: 45mm and 75mm Handle length: 1380mm Chassis size: 830 x 179 x

Compare webshops (3)

Shop

Price

£ 10.98

To Shop

£ 1,314.62

To Shop

£ 1,314.62

To Shop

Description (2)

ManoMano

General description This is an expert-quality, long chassis, low-profile pneumatic jack designed for heavy-duty lifting. It features a compact entry height of 125mm and a total reach of 2210mm, capable of lifting up to 40 tonnes. The jack is equipped with a three-stage adjustable ergonomic handle, safety features, and industrial-grade seals for durability and safety. It includes lift extensions and a standard airline connector for versatile use in professional and industrial settings. Technical specifications Capacity: 40 tonnes (stage 1), 20 tonnes (stage 2), 10 tonnes (stage 3) Minimum height: 125mm Maximum height: 302mm (stage 1), 347mm (stage 2), 396mm (stage 3) (including extensions) Lift height: 57mm (stage 1), 45mm (stage 2), 49mm (stage 3) Operating air pressure: 9–12 BAR (130–174 PSI) Air consumption: 11.5 CFM Air inlet: 1/4" BSP Wheel diameter: 125mm Wheel width: 47.5mm Saddle diameter: 70mm Extensions included: 45mm and 75mm Handle length: 1380mm Chassis size: 830 x 179 x

Amazon

Weight: 119.159852611 Pounds, Manufacturer: Draper
