Draper Pneumatic Jack, 40 Tonne

ManoMano

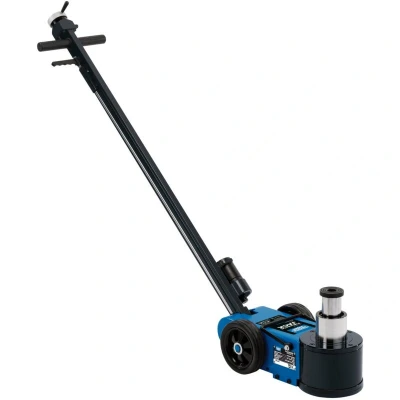

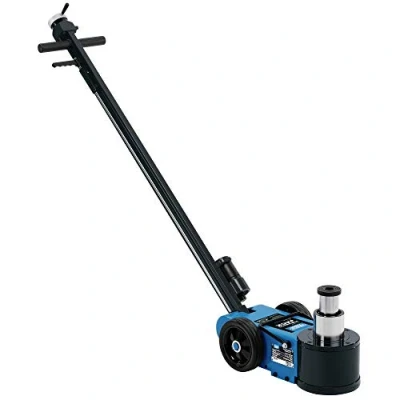

General description Expert quality portable twin-stage pneumatic jack capable of lifting up to 40 tonnes. It features a three-stage adjustable ergonomic handle with a Slow Down valve and a Self-Return switch for enhanced safety and ease of use. The jack is designed with industrial-grade seals for durability, a safety overload valve, and twin rubber-coated wheels for quieter operation, floor protection, and better maneuverability. It includes lift extensions of 45mm and 75mm and a 1/4 BSP airline connector. Technical specifications Capacity stage 1: 40 tonnes (40,000 kg) Capacity stage 2: 20 tonnes (20,000 kg) Minimum height: 150 mm Maximum height stage 1: 343 mm (with extensions) Maximum height stage 2: 409 mm (with extensions) Lift height stage 1: 73 mm Lift height stage 2: 66 mm Operating air pressure: 9 – 12 BAR (130 – 174 psi) Air consumption: 11.5 cfm Air inlet: 1/4 BSP Wheel diameter: 165 mm Wheel width: 42.5 mm Saddle diameter: 70 mm Handle length: 1300 mm Chassis size: 480 x

Electrical World

Expert Quality, portable and compact twin stage pneumatic jack, capable of lifting 40 Tonnes. The 3 stage adjustable ergonomic handle is fixed with a "Slow Down" valve and a "Self-Return" switch for increased safety and easy use. Fitted with industrial quality seals prolonging the life of the jack, a safety overload valve and twin rubber coated wheels for a quieter and smoother operation, whilst also preventing damage to garage floors and improving manoeuvrability. Supplied with 45mm and 75mm height lift extensions and a 1/4" BSP airline connector. Manufactured, tested and certified to the current EN1494 standard.

Amazon

Compact twin stage pneumatic jack Ergonomic handle grips Slow Down' valve Self-Return' switch Draper 12 months parts and labour warranty, Weight: 98.767093376 Pounds, Manufacturer: Draper
