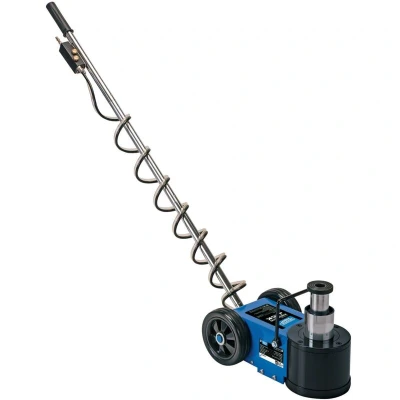

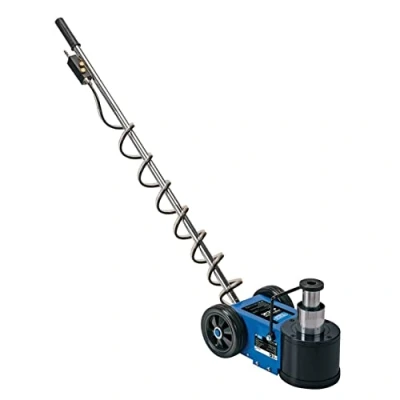

Draper Pneumatic Jack, 30 Tonne

ManoMano

General description This is a high-quality, portable twin-stage pneumatic jack designed for heavy-duty lifting. It can lift up to 30 tonnes in the first stage and 15 tonnes in the second stage, making it suitable for professional and industrial use. The jack features an ergonomic handle with safety features for easy and secure operation. It is equipped with industrial-grade seals, a safety overload valve, and twin rubber-coated wheels for quieter operation and floor protection. The jack is supplied with lift extensions of 45mm and 75mm and a 1/4 BSP airline connector. Technical specifications Capacity: 30 tonnes (stage 1), 15 tonnes (stage 2) Minimum height: 150mm Maximum height: 343mm (stage 1, with extensions), 409mm (stage 2, with extensions) Lift height: 73mm (stage 1), 66mm (stage 2) Operating air pressure: 9-12 BAR (130-174 PSI) Air consumption: 10.5 CFM Air inlet: 1/4” BSP Wheel diameter: 165mm Wheel width: 42.5mm Saddle diameter: 70mm Handle length: 1200mm Chassis size: 430 x

Electrical World

Expert Quality, portable and compact twin stage pneumatic jack, capable of lifting 30 Tonnes. The ergonomic handle is fixed with a "Slow Down" valve and a "Self-Return" switch for increased safety and easy use. Fitted with industrial quality seals prolonging the life of the jack, a safety overload valve and twin rubber coated wheels for a quieter and smoother operation, whilst also preventing damage to garage floors and improving manoeuvrability. Supplied with 45mm and 75mm height lift extensions and a 1/4" BSP airline connector. Manufactured, tested and certified to the current EN1494 standard.

Amazon

Weight: 80.46872563 pounds, Manufacturer: Draper Expert
