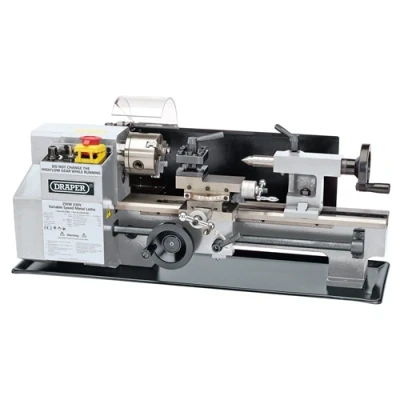

Draper Variable Speed Metal Work Lathe, 250W

ManoMano

General description This precision metalworking lathe is designed for small industrial applications and DIY projects. It features a robust construction capable of cutting metric gears and performing various machining tasks. The lathe includes a variable speed reversible drive and a powered cutting facility for both right and left-hand threads. Safety features include a no-volt switch to prevent accidental startup and a standard chuck guard. Technical specifications Maximum diameter for turning: 180mm Between centers: 200mm or 300mm options Chuck capacity: 80mm Spindle speeds: 100-1100 rpm (low), 100-2500 rpm (high) Cross slide travel: 65mm Spindle bore: 20mm Overall length: approximately 770-830mm Weight: 42kg Compatibility and accessories Supplied with a self-centering three-jaw chuck Includes an approved power plug Extensive range of accessories available for various machining tasks Installation Designed for easy setup on a stable work surface Ensure proper electrical connection

Electrical World

Precision built metal working lathe capable of cutting metric gears. Variable speed reversible drive and powered cutting facility for right and left hand threads. No-volt switch to prevent accidental switch on with the chuck guard fitted as standard. Supplied with self-centring three jaw chuck and approved plug. Extensive range of accessories available. Carton packed.

Amazon

Fitted with metric graduated scales A mounted NVR switch and cutting guards Supplied with a self-centring three-jaw chuck Designed for small industrial units Powered cutting facility for right and left hand threads, Weight: 92.59415004 pounds, Manufacturer: Draper
