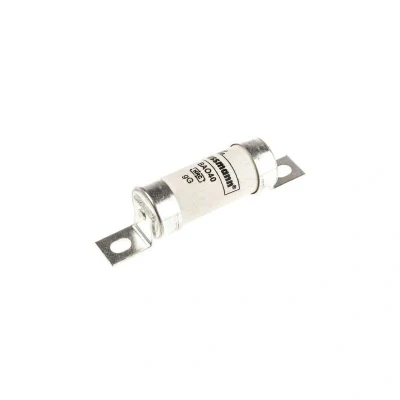

Eaton BAO40 40amp 500V AC BS88 GG Fuse

ManoMano

Eaton: BAO40 40amp 500V AC BS88 GG Fuse Low Voltage fuses Offset bolted tags 2A - 14x55mm 4A - 14x85mm Low Voltage Fuses Rated up to 550Vac (SSD types 240Vac/120Vdc) Low power loss, typically 20% lower than the requirements of BS88 Suitable for type 2 co-ordinated applications as defined in IEC 947-4 Suitable for three-phase applications General purpose (gG) and dual motor rated (gM) types Time/current characteristics (IEC 269) Low temperature rise, suitable for high density mounting applications MPN: BAO40 EAN: 5027590491976 BAO40 40amp 500V AC BS88 GG Fuse Attributes: Breaking Capacity at Maximum Voltage Rating: 80 kA Current Rating: 40A Fuse Type: HRC Fuse MFR Part No.: BAO40 Standard: BS 88 Voltage Rating: 500V Voltage Rating AC: 500V

Zoro Tools

Low Voltage fuses Offset bolted tags 2A - 14x55mm 4A - 14x85mm Low Voltage Fuses Rated up to 550Vac (SSD types 240Vac/120Vdc) Low power loss, typically 20% lower than the requirements of BS88 Suitable for type 2 co-ordinated applications as defined in IEC 947-4 Suitable for three-phase applications General purpose (gG) and dual motor rated (gM) types Time/current characteristics (IEC 269) Low temperature rise, suitable for high density mounting applications
