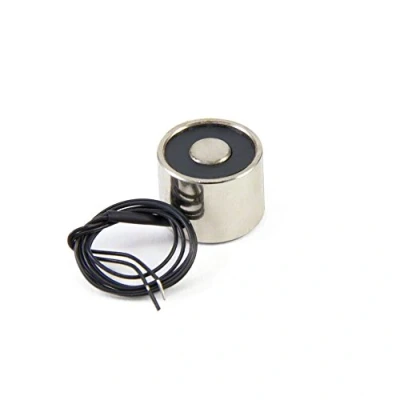

Electromagnet with M3 Mounting Hole for Door and Hatch Mechanisms, Automated Assembly Lines, Robotics, Lifting Handling Ferrous Materials 20mm dia x 15mm thick 2.5kg Pull 3W/0.13A

EASY LIFTING & HOLDING. Easy to use electromagnet for lifting and holding applications such as assembly lines, door & hatch mechanisms and robotics. POWER SOURCE REQUIRED. These magnets require a power source; when electricity is passed through them they produce a strong magnetic field and when the power is removed, the magnetic field disappears instantly. SPECIFICATION. 20mm diameter x 15mm thick. Zinc Plated Mild Steel. Supplied with an M3 threaded hole on the reverse for fixing and mounting. Operating voltage 24VDC, power source not included. SUPPLIED WITH WIRE. Each magnet is supplied with approximately 605mm of wire for connecting to a direct current (DC) power source. SAFE WORKING LIMIT. Each magnet has a safe working limit (SWL) of up to 2.5kg in a vertical direct position when electricity is applied
