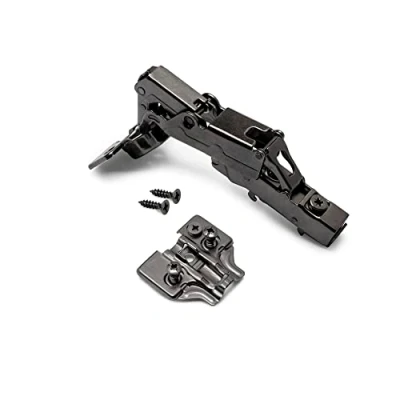

Emuca Hinge, D. 35 mm, Full Overlay, Soft Close, 165º Opening, Euro Screw, Titanium, Steel, 2 pcs.

X91 full overlay hinge Fastening for screwing. Concealed hinge with a diameter of 35 mm. 165º Opening. It has a cushioning piston for soft closing of the door. Automatic system for clip assembly of the hinge to the plate. Door thickness of 14 to 26 mm. Can be adjusted three-dimensionally. Drilling range of the concealed hinge D = 3 ~ 7 mm. Depth adjustment via eccentric screw. Spring for both closing and opening. X91 Plate. Fastening with Euro D screw 5 x 12 mm. 0 mm Height. With eccentric adjustment. It includes the screws necessary for assembly. Made of titanium finished steel., Weight: 0.9259415004 Pounds, Manufacturer: Emuca
