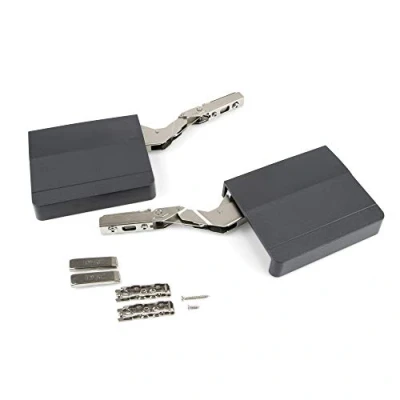

Emuca Stay for Lift ups Furniture Door,Lift up Hinge System, Strength 1.600 3.600, Steel and Plastic, Anthracite Grey

Lift up stay hinge system for doors to fully use the space and make access easier. For strengths required between 1600 - 3600 and for modules up to 1,200 mm width and height between 250 and 600 mm. CALCULATE THE COMPASS STRENGTH F = H x (Door weight + 2*Handle weight) F = Strength. H = Door height in mm. Door weight = Door weight in kg. Handle weight = Handle weight in kg. Setting strength of the mechanism and position of the door in three dimensions ±2 mm. Removing the door without tools thanks to its easy clip system. The set includes hooks, screws for fastening, the marker template and the decorative covers in anthracite grey., Manufacturer: EMUCA
