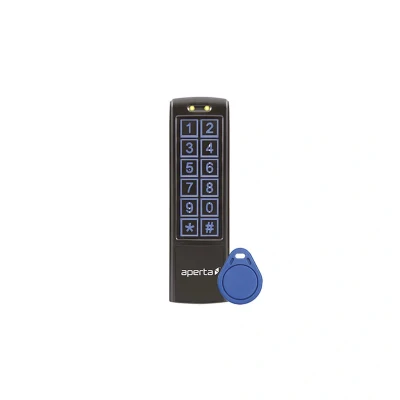

ESP Aperta Proximity and Keypad Door Entry
Description
Electrical World
Proximitry and Keypad Door EntryEasy install, simple self-contained programmingUp to 1,010 key tag holders or Pin numbers2 separate user groups2 relay outputsAnti tamper optionWeather/dust proof robust construction IP65Complete with 10 tagsTechnical SpecificationCapacity: Zone 1: 1000 Card/ Tag Combination, Zone 2: 10 Card/ Tag CombinationReader Frequency: 125KHzEffective Distance: <5CMStatus Indication: Red/ Green LEDRelay Operation: NO/NC: 4A@30vDCRelay Duration: 01-99secWorking Temp.: -10 to + 55°CIngress Protection: IP65Construction: AluminiumVoltage: DC: 12V-24V AC: 12V~24VWorking Current: <120mAStandby Current: <90mADimensions: 150(H)x43(W)x23(D)Technical Specification:IP Rating: IP65Dimensions: Length: 23mm x Height: 150mmWarranty: 3 Years
Description
(2)
Proximitry and Keypad Door EntryEasy install, simple self-contained programmingUp to 1,010 key tag holders or Pin numbers2 separate user groups2 relay outputsAnti tamper optionWeather/dust proof robust construction IP65Complete with 10 tagsTechnical SpecificationCapacity: Zone 1: 1000 Card/ Tag Combination, Zone 2: 10 Card/ Tag CombinationReader Frequency: 125KHzEffective Distance: <5CMStatus Indication: Red/ Green LEDRelay Operation: NO/NC: 4A@30vDCRelay Duration: 01-99secWorking Temp.: -10 to + 55°CIngress Protection: IP65Construction: AluminiumVoltage: DC: 12V-24V AC: 12V~24VWorking Current: <120mAStandby Current: <90mADimensions: 150(H)x43(W)x23(D)Technical Specification:IP Rating: IP65Dimensions: Length: 23mm x Height: 150mmWarranty: 3 Years
Expert ElectricalESP Black Proximity and Keypad Door Entry
Product specifications
