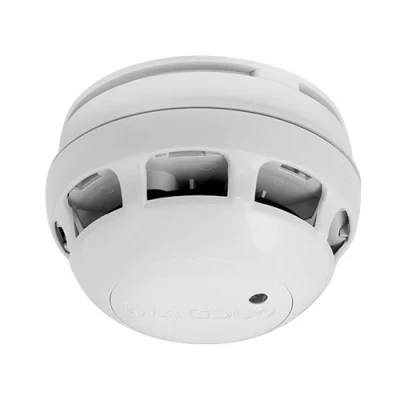

ESP FlexiPoint Detector with Sounder for Fire Detection

Electrical World

FlexiPoint Detector with Sounder for Fire Detection7 modes of fire detection including combined smoke/heat Complete with 3 sounder modes Built-in End of Line function Self-calibration every 6 hours Device wiring base included Continuous dust contamination monitoringTechnical Specification:Dimensions: Diameter: 107mmDepth: 75mmTemperature Range: Operating Temperature: -10°C to +50°CVoltage Range: Operating Voltage Range: 18V to 32V DCOperating Current: Quiescent: 101 uA (Typical)End of line ON if Applicable: +50 uA (Typical)Non Strobe Version: Alarm Sounding – Sounder High: 8.00 mA (Typical)Alarm Sounding – Sounder Low: 2.50 mA (Typical)Alarm Sounding – Sounder Off: 150 uA (Typical)Alarm Activated : 15.50 mA (Typical)Strobe Version: Alarm Sounding – Sounder High: 10.50 mA (Typical)Alarm Sounding – Sounder Low: 4.90 mA (Typical)Alarm Sounding – Sounder Off: 2.60 mA (Typical)Alarm Activated: 18.00 mA (Typical)LED Operation: Detector in Normal State (Smoke): Flash at 20 Second IntervalsDetector in Normal State (Heat): Double Flash at 20 Second IntervalsDetector at EOL: Flash at 5 Second IntervalsDetector in Fault: Flash at 1.3 Second IntervalsDetector Detecting Fire: Flash at 0.7 Second IntervalsDetector in Fire (Once Processed at Panel): ContinuousDevice Loading Units: Max Loading Units per Zone: 160 DLUNon Strobe Version: Sounder High: 8.0 DLUSounder Low: 6.5 DLUNo Sounder: 1.0 DLUStrobe Version: Sounder High: 16.0 DLUSounder Low: 8.0 DLUNo Sounder: 8.0 DLUVolume Level (@ 1m anechoic, Dual Tone): Sounder High: 90+ dB(A)Sounder Low: 70+ dB(A)Dimensions:
