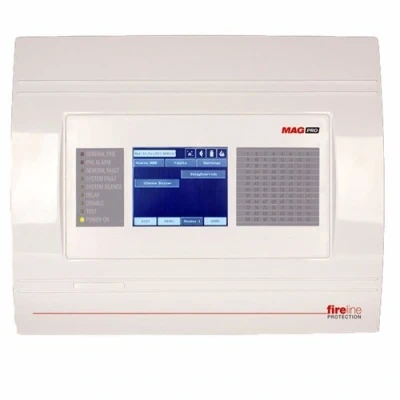

ESP MAGPro 96 Zone Addressable Fire Alarm Panel

** This product is delivered directly from the supplier. Please allow 7-10 Days for delivery ** The MAGPro range has been created to balance performance, reliability and aesthetics, whilst being fully compliant with CPR and certified to EN54 standards. The range includes everything required to complete a high quality, durable, addressable fire alarm installation. 96 zone addressable fire alarm panel supplied with 1 loop. Expandable to 4 loops using additional MAGPRO96-L250’s. A maximum of 250 devices can be connected to each loop. 96 Zones Maximum 250 devices per loop Memory Log: 10,000 events Networkable up to 32 Panels 320 x 240 pixel touch screen display Free programming software Micro USB port for PC connection Loop & battery calculator software included Certified to EN54–2/4 CPR Compliant Inputs Loops: 1 expandable to 4 Devices Per Loop: 250 Protocol: MAGPRO Power Mains Fail Consumption 285mA DC - 1 LOOP 360mA DC - 2 LOOP 435mA DC - 3 LOOP 510mA DC - 4 LOOP Mains Supply: 230V AC + - 10% Max Loop Current: 500mA DC Backup: 1x12V 17Ah Outputs 1 Sounder: 24v DC @ 300mA 4 Programmable Relays: 110v ac @ 1A 2 Monitored Outputs: 24v DC @ 300mA 1 Auxiliary Output: 24v DC @ 300mA 1 Fault Output: 24v DC @ 300mA Environment Working Temperature: -5C TO +40C Storage: -10C TO 60C Humidity: 0 - 95% Weight: 4.2KG Dimensions: 456 x 350 x 125mm Instruction Manual/Specification Sheet Addressable v Conventional Information MAGPro Catalogue This item comes complete with a 12 month warranty from the manufacture.
