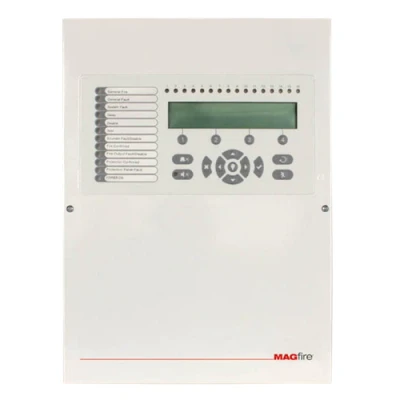

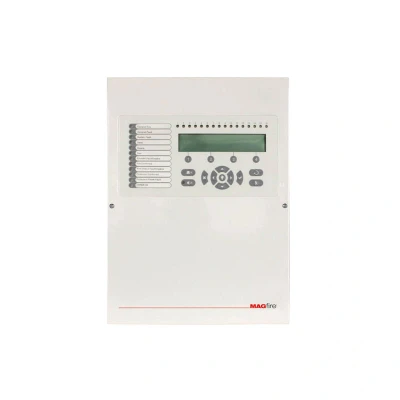

ESP Addressable 16 Zone Fire Panel
Description
Electrical World
16 Zone Addressable Surface Mounted Fire Panel16 Zones Maximum 250 devices per loop Memory Log: 10,000 events Networkable up to 32 Panels Class change function 4 x 40 character LCD display Free programming software (On completion of training - UK) Micro USB port for PC connection Loop & battery calculator software included Certified to EN54–2/4Technical Specification:Inputs: Loops: 1 expandable to 2Devices Per Loop: 250Protocol: MAGPROPower: Mains Fail Consumption: 125mA DC – 1 LOOP 213mA DC – 2 LOOPMains Supply: 230V AC + 10%/ -15%Max Loop Current: 500mA DCBackup: 1x12V 18AhOutputs: 2 Sounders: 24v DC @ 500mA4 Programmable Relays: 24v DC @ 15A3 Monitored Outputs: 24v DC @ 100mA3 Monitored Inputs: Volt free contactsEnvironment: Working Temperature: -5°C TO +40°CStorage: -10°C TO 60°CHumidity: 0 - 95%Weight: 4.2KG (Without Battery)Dimensions: 320 x 220 x 80mm
Description
(2)
16 Zone Addressable Surface Mounted Fire Panel16 Zones Maximum 250 devices per loop Memory Log: 10,000 events Networkable up to 32 Panels Class change function 4 x 40 character LCD display Free programming software (On completion of training - UK) Micro USB port for PC connection Loop & battery calculator software included Certified to EN54–2/4Technical Specification:Inputs: Loops: 1 expandable to 2Devices Per Loop: 250Protocol: MAGPROPower: Mains Fail Consumption: 125mA DC – 1 LOOP 213mA DC – 2 LOOPMains Supply: 230V AC + 10%/ -15%Max Loop Current: 500mA DCBackup: 1x12V 18AhOutputs: 2 Sounders: 24v DC @ 500mA4 Programmable Relays: 24v DC @ 15A3 Monitored Outputs: 24v DC @ 100mA3 Monitored Inputs: Volt free contactsEnvironment: Working Temperature: -5°C TO +40°CStorage: -10°C TO 60°CHumidity: 0 - 95%Weight: 4.2KG (Without Battery)Dimensions: 320 x 220 x 80mm
Expert ElectricalESP Addressable 16 Zone Fire Panel White
Product specifications
