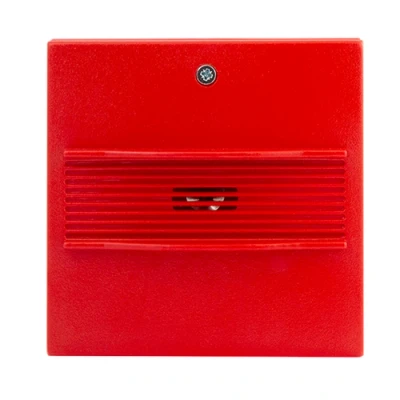

ESP Wall Sounder for MAGDUO Red

ESP
ESP Wall Sounder for MAGDUO Red

Image of ESP Wall Sounder for MAGDUO Red

Prices from

30.64

	£ 30.64	To Shop
	£ 35.07	To Shop

Description

Electrical World MAGDUO Wall Sounder in Red Wall mount red sounder Volume level adjustment Built-in End of Line function Device base includedTechnical Specification:Dimensions: Width: 89 mmHeight: 89 mmFlush Depth Protruding: 34 mmSurface Depth: 62 mmTemperature Range: Operating Temperature: -10°C to +50°CVoltage Ranges: DC Output from Mains Powered Panel: 25.5 to 35V DCDC Output from Battery Powered Panel: 20 to 26V DCOperating Current (Typical): Quiescent: 185 uAEnd of line ON if applicable (in addition to Quiescent): 175 uAAlarm Sounding – Sounder High: 14.5 mAAlarm Sounding – Sounder Low: 12.6 mADevice Loading Units: Max Loading Units per Zone: 160 DLUSounder High: 14.5 DLUSounder Low: 13.0 DLUVolume Level (@ 1m anechoic, Dual Tone): Sounder High: 85+ dB(A)Sounder Low: 65+ dB(A)Ingress Protection : IP Rating: IP 21CDimensions:

Compare webshops (2)

Shop

Price

£ 30.64

To Shop

£ 35.07

To Shop

Description (2)

Electrical World

MAGDUO Wall Sounder in Red Wall mount red sounder Volume level adjustment Built-in End of Line function Device base includedTechnical Specification:Dimensions: Width: 89 mmHeight: 89 mmFlush Depth Protruding: 34 mmSurface Depth: 62 mmTemperature Range: Operating Temperature: -10°C to +50°CVoltage Ranges: DC Output from Mains Powered Panel: 25.5 to 35V DCDC Output from Battery Powered Panel: 20 to 26V DCOperating Current (Typical): Quiescent: 185 uAEnd of line ON if applicable (in addition to Quiescent): 175 uAAlarm Sounding – Sounder High: 14.5 mAAlarm Sounding – Sounder Low: 12.6 mADevice Loading Units: Max Loading Units per Zone: 160 DLUSounder High: 14.5 DLUSounder Low: 13.0 DLUVolume Level (@ 1m anechoic, Dual Tone): Sounder High: 85+ dB(A)Sounder Low: 65+ dB(A)Ingress Protection : IP Rating: IP 21CDimensions:

Expert Electrical

ESP 2 Wire Wall Sounder Square Red for MAGDUO
