Description
Amazon

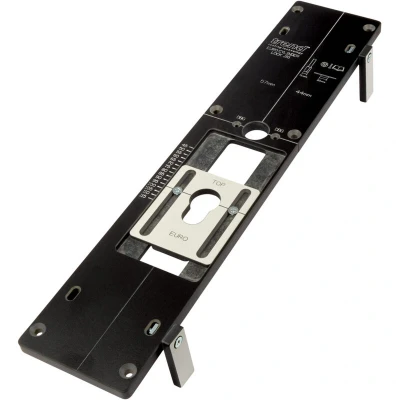

Fast set ups are assured with the etched incremental markings on the template for the barrel and spindle ratios as well as the lock handle backset, with standard backsets of 44mm and 57mm catered for. Long rotating stops set the jig to the edge of the door with a set of additional spacers supplied to move the jig furthe in from the edge, catering for locks with slightly different backsets, covering a wider range of locks. The jig quickly sets to either side of the door, simply rotating the stops for repositioning on the other side for maximum productivity on single or batch work applications. Using a 12mm straight cutter and a 20mm guide bush, the jig routs a 16mm hole for the spindle bar and the lock cylinder barrel, with 1mm clearance around the barrel for a high class fit and finish. Additional drilling positions for marking the handle lock plate at 40mm centres can be made with 2.75mm diameter Trend Snappy drill bit guide ensuring maximum value and performance.
Description
(3)
Fast set ups are assured with the etched incremental markings on the template for the barrel and spindle ratios as well as the lock handle backset, with standard backsets of 44mm and 57mm catered for. Long rotating stops set the jig to the edge of the door with a set of additional spacers supplied to move the jig furthe in from the edge, catering for locks with slightly different backsets, covering a wider range of locks. The jig quickly sets to either side of the door, simply rotating the stops for repositioning on the other side for maximum productivity on single or batch work applications. Using a 12mm straight cutter and a 20mm guide bush, the jig routs a 16mm hole for the spindle bar and the lock cylinder barrel, with 1mm clearance around the barrel for a high class fit and finish. Additional drilling positions for marking the handle lock plate at 40mm centres can be made with 2.75mm diameter Trend Snappy drill bit guide ensuring maximum value and performance.
Power Tools DirectA Quick And Easy Routing Jig To Cut Hole For Euro Cylinder Lock Barrels.Routs Out Recess To Suit Euro Lock Cylinder Barrel Size 33Mm X 17Mm/10Mm.Sliding Plate Allows Handle Pitch To Lock Body Adjustment From 45Mm To 115Mm.44Mm And 57Mm Backset.Jig Is Designed To Give A 1Mm Clearance Around The Barrel.Allows 16Mm Diameter Hole For Handle Spindle To Be Routed.Holes For Use With 2.75Mm Diameter Trend Snappy Drill Bit Guide For Marking Handle Lock Plate At 40Mm Centres.Made From 12Mm Thick High Pressure Laminate For Longer Life.Long Rotating Edge Stops For Use With 44Mm Doors With Leading Edge.Reversible Design.Includes Spacer Pack To Allow For Slightly Deeper BacksetAccessory Sliding Plates Available For Small Oval And Large Oval Cylinder Locks.Requires Plunge Router 12Mm Diameter Cutter And 20Mm Diameter Guide Bush.Cylinder Not Included.PTDTREDIRECLJIG
ManoManoGeneral description The Trend ECL/JIG is a routing jig designed specifically for Euro cylinder locks, making it an essential tool for door installations.
