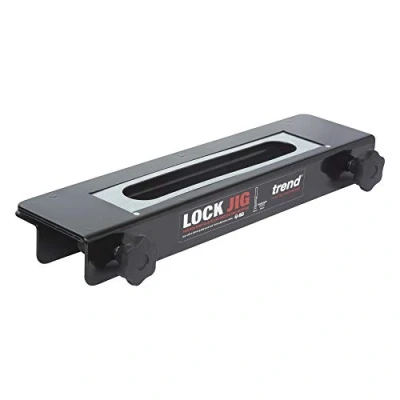

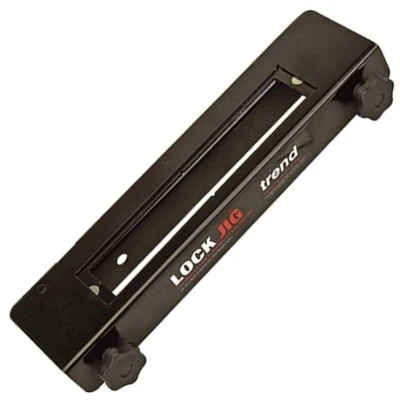

Large lock jig Trend

Amazon

SUITABLE FOR BALDWIN LOCKS: This lock jig is compatible with two sizes of Baldwin locks, with faceplate sizes of 20mm x 235mm or 24mm x 235mm and mortise sizes of 17mm x 170mm. FAST AND ACCURATE RESULTS: With this lock jig, you can achieve fast, clean, and accurate results on doors that are 34mm to 58mm thick, even in hardwood. ADAPTOR PLATE INCLUDED: An adaptor plate is included with this lock jig to allow smaller templates to be fitted, as supplied with the standard LOCK/JIG. COMPLETE ROUTING: This jig allows for precise routing of the faceplate and mortise for larger locks, ensuring proper fit and functionality. INCLUDED/REQUIRED TOOLS: This lock jig comes with a ½” shank TCT router bit and 30mm screw-on style guide bush. However, an auger bit and drill are required to complete deep mortises and the jig requires a router with 80mm plunge., Weight: 7.18 pounds, Manufacturer: Trend Routing Technology

ManoMano

General description For routing the face-plate and mortise for larger locks quickly and accurately. This jig is suitable for DDA (Disability Discrimination Act) lock sizes. Technical specifications Face plate size: 20mm x 235mm Mortise size: 17mm x 170mm Compatible door thickness: 34mm to 58mm Required plunge router: 80mm plunge Guide bush: 30mm with 6mm spigot Cutter diameter: 12mm long reach cutter Compatibility and accessories Adaptor plate included for smaller templates (239mm x 60mm) Installation An auger bit and drill are required to complete deep mortises.
