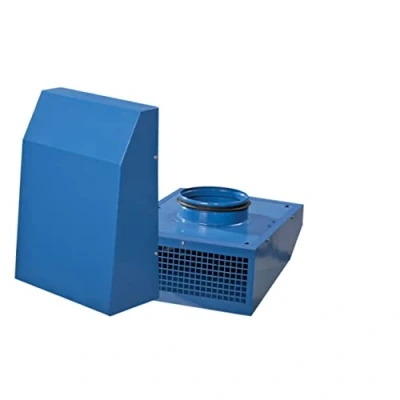

External wall Centrifugal fan VCN 125 up to 485 m3/h

ManoMano

General description The External Wall Centrifugal Fan VCN 125 is designed for efficient air extraction in various settings, including homes, commercial spaces, and industrial buildings. With a powerful airflow rate of up to 485 m³/h, this fan ensures optimal ventilation and air circulation. Technical specifications Voltage: 230 V ~ 50 Hz Max. wattage: 75 W Max. current consumption: 0.33 A Max. revolutions per minute: 2475 Max. airflow rate: 485 m³/h Sound pressure level Lp-3m: 54 dB(A) Max. temperature for continuous operation: 55°C IP code: IPX4 Weight: 3.82 kg Nominal width: 125 mm Housing material: powder-coated steel Housing colour: blue Thermal overload protection Protective grille against birds and rodents Compatibility and accessories Designed for installation on external walls Installation Easy installation on external walls Usage Ideal for powerful air extraction in homes, commercial, or industrial buildings Other information Ø D (mm) B (mm) H (mm) L (mm) VCN 125 124 260 355

Amazon

Steel casing with polymer coating/Outdoor Use – extremely weather resistant Very quiet operation ball bearing motor especially designed dynamic Ausgewuchtet Suitable for use in restaurants, bars, public halls as well as bathroom/toilet Contact person in the German-speaking market (warranty, advice, 3,500 pages)/Allcata The fan is compatible with the corresponding pipe systems identical diameter., Manufacturer: Vents
