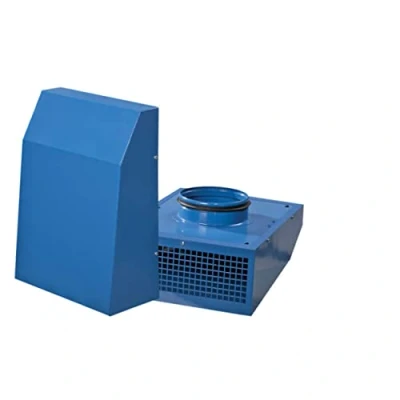

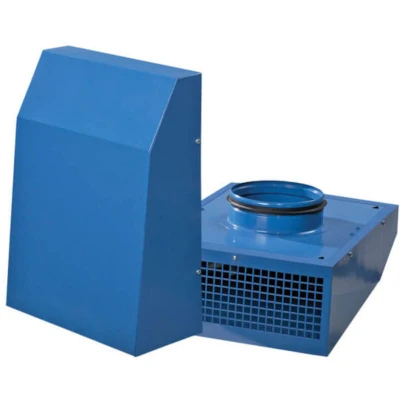

External wall Centrifugal fan VCN 150 up to 630 m3/h

ManoMano

General description The External Wall Centrifugal Fan VCN 150 is designed for efficient air extraction in various settings, including homes, commercial spaces, and industrial buildings. This centrifugal inline fan is suitable for installation on external walls, providing powerful airflow and reliable performance. Technical specifications Voltage: 230 V ~ 50 Hz Max. wattage: 96 W Max. current consumption: 0.42 A Max. revolutions per minute: 2400 Max. airflow rate: 630 m³/h Sound pressure level Lp-3m: 58 dB(A) Max. temperature for continuous operation: 55°C IP code: IPX4 Weight: 4.53 kg Nominal width: 150 mm Housing material: powder-coated steel Housing colour: blue Thermal overload protection Protective grille against birds and rodents Compatibility and accessories Compatible with standard ducting systems for effective air extraction. Installation Designed for easy installation on external walls, ensuring optimal airflow and performance. Usage Ideal for extracting air in residential,

Amazon

Centrifugal fan for mounting on exterior walls, Manufacturer: Vents
