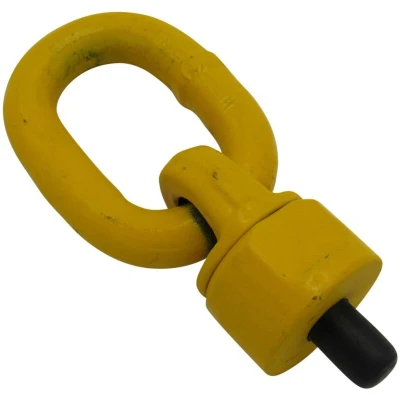

Eye Bolt with Link 0.3 Ton M8 (Swivel Lifting Rotating Ring Grade 80 8MM)

ManoMano

8MM GraDe 80 Swivel Eyebolt With Link Safe Working Load: 0.6 ton @ 0 degrees 0.3 ton @ 90 degrees Material - Grade 80 (g80) Finish - Yellow (may vary) Factor of safety 4:1 Conforms to: BS EN 1677 Product Code 0 Degree SWL (Tonne) 90 Degree SWL (Tonne) A (MM) B (MM) C (MM) D (MM) E (MM) F (MM) G (MM) H (MM) I (MM) SFSEBL08 0.6 0.3 8 54 12 16 78 52.5 29 14 14 SFSEBL10 0.9 0.45 10 54 19 15 79 51.5 31 36 14.5 SFSEBL12 1 0.5 12 54 17 15.5 80 52 29 36 14 SFSEBL16 2 1.12 16 53 19 16.5 80 52 29 36 14 SFSEBL20 4 2 20 69 30 19.5 102 70 32.5 49.5 16 SFSEBL24 6.3 3.15 24 80 30 21.5 120 84 36.5 57 18 SFSEBL30 10.6 5.3 30 98 35 23 122 82 38 66 19 SFSEBL36 11.8 8 36 112 49 25 157 114 51.5 80 22 These are a high quality piece of lifting gear, manufactured from grade 80 steel which is a high-strength material. The swivel feature of these eyebolts allow for loading from a variety of angles whilst simultaneously providing multiple lifting positions, which creates great versatility in demanding

Amazon

Safe working load 0.3 ton @ 90 degrees Material Grade 80 G80 Finish Yellow may vary Factor of safety 4: 1 Conforms to: BS EN 1677
