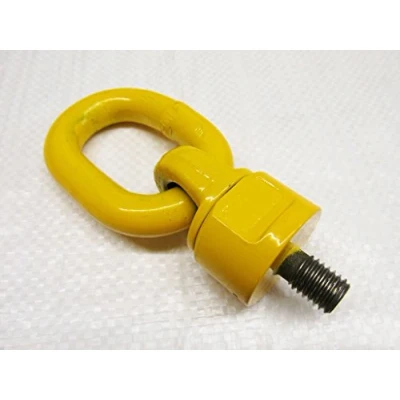

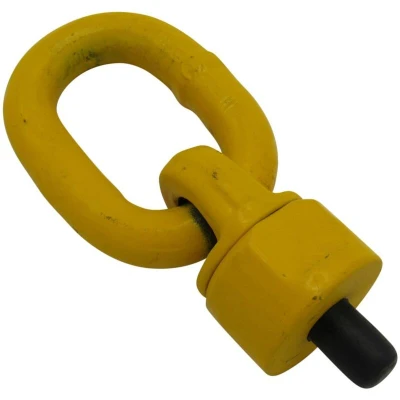

Eye Bolt with Link 0.5 Ton M12 (Swivel Lifting Rotating Ring Grade 80 12MM)

General description These 12MM Grade 80 Swivel Eyebolts with Link are high-quality lifting gear manufactured from Grade 80 steel, known for its high strength and durability. The swivel feature allows for loading from various angles, providing multiple lifting positions and versatility in demanding environments. Technical specifications Safe Working Load (SWL): 1 ton @ 0 degrees, 0.5 ton @ 90 degrees Material: Grade 80 (g80) Finish: Yellow (may vary) Factor of safety: 4:1 Conforms to: BS EN 1677 Product Codes and Specifications: SFSEBL08: 0.6T @ 0° / 0.3T @ 90°, Dimensions: A=8mm, B=54mm, C=12mm, D=16mm, E=78mm, F=52.5mm, G=29mm, H=14mm, I=14mm SFSEBL10: 0.9T @ 0° / 0.45T @ 90°, Dimensions: A=10mm, B=54mm, C=19mm, D=15mm, E=79mm, F=51.5mm, G=31mm, H=36mm, I=14.5mm SFSEBL12: 1T @ 0° / 0.5T @ 90°, Dimensions: A=12mm, B=54mm, C=17mm, D=15.5mm, E=80mm, F=52mm, G=29mm, H=36mm, I=14mm SFSEBL16: 2T @ 0° / 1.12T @ 90°, Dimensions: A=16mm, B=53mm, C=19mm, D=16.5mm, E=80mm, F=52mm, G=29mm,

Safe Working Load - 1 Ton / 0.5 Ton @ 0/90 Degrees Material - Grade 80 (G80) Finish - Yellow (May Vary) A = 12MM, B = 54.5MM, C = 20MM, D = 17.5MM, E = 80MM F = 52MM, G = 27.5MM, H = 36MM, I = 14.8MM
