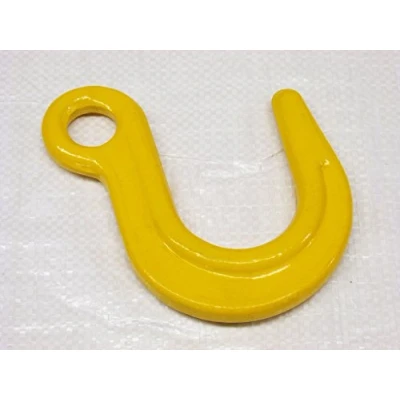

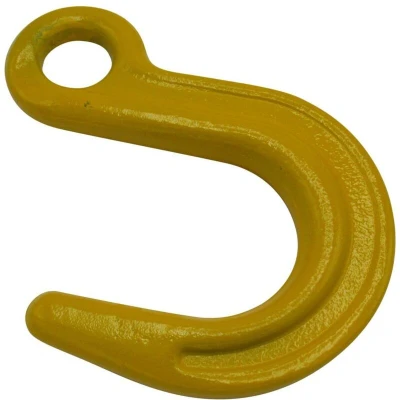

Eye Foundry Hook Grade 8 20MM (G80 12.5 Ton Lifting Gear Chain Sling Billet)

General description Eye Foundry Hook Grade 8 is a high-quality lifting gear designed for chain slings, primarily used in foundries and construction sites for lifting billets. The eye on this hook allows for easy attachment to various fittings, making it a versatile tool in the lifting gear industry. Technical specifications Material: Grade 80 (G80) Finish: Yellow (may vary) Factor of Safety: 4:1 Conforms to: BS EN 1677 Available Product Codes and Specifications: SFYASFH07: SWL 2 Ton, A 114 mm, B 31 mm, C 20 mm, D 59.5 mm, E 157 mm, F 13 mm, G 23.5 mm SFYASFH10: SWL 3.15 Ton, A 181 mm, B 36 mm, C 25 mm, D 70.5 mm, E 195 mm, F 15 mm, G 31.5 mm SFYASFH13: SWL 5.3 Ton, A 175 mm, B 46 mm, C 33 mm, D 88 mm, E 238 mm, F 20 mm, G 43.5 mm SFYASFH16: SWL 8 Ton, A 215 mm, B 48 mm, C 40 mm, D 108 mm, E 270 mm, F 22 mm, G 48 mm SFYASFH20: SWL 12.5 Ton, A 245 mm, B 63 mm, C 46 mm, D 110 mm, E 325 mm, F 27 mm, G 59 mm Other information Test certificate will be supplied via email Free delivery
