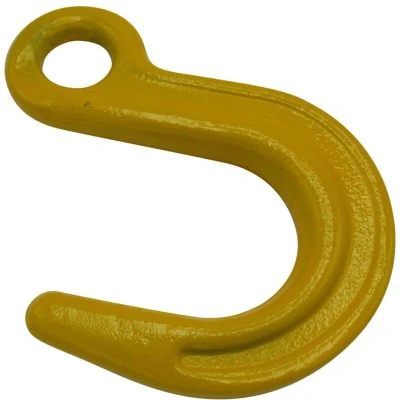

Eye Foundry Hook Grade 8 7MM (G80 2 Ton Lifting Gear Chain Sling Billet)

ManoMano

General description Eye Foundry Hook Grade 8 7MM (G80 2 Ton Lifting Gear Chain Sling Billet) is a high-quality lifting gear designed for the lifting gear industry, particularly in foundries and construction sites. This hook is primarily used for lifting billets and features an eye that allows attachment to various fittings. Technical specifications Chain Size: 7MM Material: Grade 80 (G80) Finish: Yellow (may vary) Factor of Safety: 4:1 Conforms to: BS EN 1677 Product Codes and Specifications: SFYASFH07: SWL 2 Tonne, A 114 MM, B 31 MM, C 20 MM, D 59.5 MM, E 157 MM, F 13 MM, G 23.5 MM SFYASFH10: SWL 3.15 Tonne, A 181 MM, B 36 MM, C 25 MM, D 70.5 MM, E 195 MM, F 15 MM, G 31.5 MM SFYASFH13: SWL 5.3 Tonne, A 175 MM, B 46 MM, C 33 MM, D 88 MM, E 238 MM, F 20 MM, G 43.5 MM SFYASFH16: SWL 8 Tonne, A 215 MM, B 48 MM, C 40 MM, D 108 MM, E 270 MM, F 22 MM, G 48 MM SFYASFH20: SWL 12.5 Tonne, A 245 MM, B 63 MM, C 46 MM, D 110 MM, E 325 MM, F 27 MM, G 59 MM Other information Test Certificate will

Amazon

Suits 7MM Chain 2 Ton Safe Working Load Grade 80 A=117.5, B=33, C=19.5 D=60MM E=160MM, F=12.2MM, G=24MM, Manufacturer: SecureFix Direct
