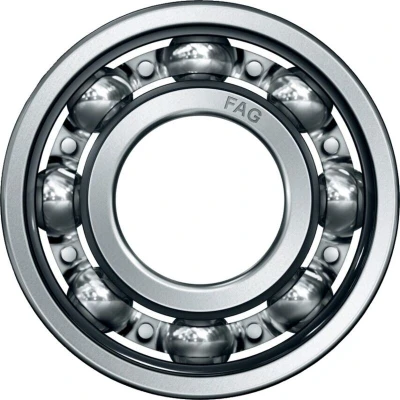

FAG 6202 Deep Groove Ball Bearing

ManoMano

FAG: 6202 Deep Groove Ball Bearing The most commonly used and versatile bearing type. Designed for high speeds, highly durable and requiring little maintenance. Close conformity between the balls and the deep raceway grooves handle high speeds, radial loads and axial loads in either direction. Applications are general engineering and manufacturing, transmissions, gearboxes, wheel hubs, gardening and agricultural equipment, pumps etc. Dimensions in accordance with ISO 15:1981. Open type without seals to allow for the free circulation of either oil or grease, used in gearboxes and other assemblies where a lubricant is already present. MPN: 6202-C EAN: 4012802361032 6202 Deep Groove Ball Bearing Attributes: Dynamic Load Rating: 7,800 N Enclosure: Open Inside Diameter: 15mm Limiting Speed: 33,000r/min Operating Temperature Range: -40 to 120°C Outside Diameter: 35mm Radial Internal Clearance: CN Reference Speed: 21,900r/min Static Load Rating: 3,750 N Weight: 0.043kg Width: 11mm

Zoro Tools

The most commonly used and versatile bearing type. Designed for high speeds, highly durable and requiring little maintenance. Close conformity between the balls and the deep raceway grooves handle high speeds, radial loads and axial loads in either direction. Applications are general engineering and manufacturing, transmissions, gearboxes, wheel hubs, gardening and agricultural equipment, pumps etc. Dimensions in accordance with ISO 15:1981. Open type without seals to allow for the free circulation of either oil or grease, used in gearboxes and other assemblies where a lubricant is already present.
