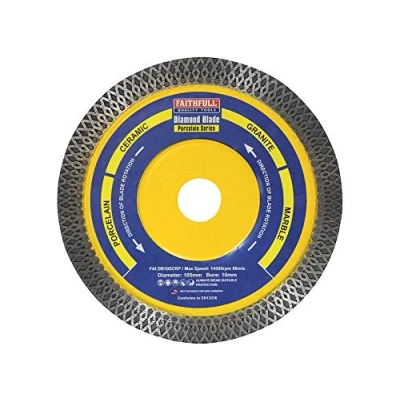

Faithfull FAIDB105CRP Porcelain, Ceramic and Granite Diamond Cutting Blade 105 mm (4 Inch)

The Faithfull Porcelain Diamond Blade 105 x 16mm is a high-performance cutting tool designed for cutting ceramic, porcelain, granite, porcelain-based paving, and marble. It features a long-lasting 10mm deep continuous sintered rim for fast, clean cuts and can be used for both wet and dry cutting, with wet cutting recommended to extend blade life and aid dust suppression. A reinforced center core helps prevent de-tensioning, reduces vibration, and increases durability. The blade conforms to EN 13236 and is compatible with 105mm diameter blades that have a 16mm bore.

Technical specifications

• Disc Diameter: 105mm
• Bore: 16mm
• Maximum RPM: 14,500
• Blade thickness: 10mm
• Compatibility: 105mm diameter blades with 16mm bore (angle grinders and suitable cutting tools)
• Conforms to EN 13236

Usage and installation

Suitable for cutting ceramic, porcelain, granite, porcelain-based paving, and marble. Wet cutting is recommended for longer blade life and dust suppression, but the blade can be used dry as well. The blade features a long-lasting 10mm deep continuous sintered rim for fast, clean cuts, and a reinforced center core to prevent de-tensioning and reduce vibration. Ensure the tool is unplugged before installation, attach the blade securely onto the spindle with proper alignment, and tighten the nut or flange using the appropriate wrench or tool.

Ensure the tool is unplugged before installation. Attach the blade securely onto the spindle, ensuring proper alignment, and use the appropriate wrench or tool to tighten the nut or flange.
