Ganter GN237 ZD 60 A SR Hinge ; Zinc Die Cast; Silver

ManoMano

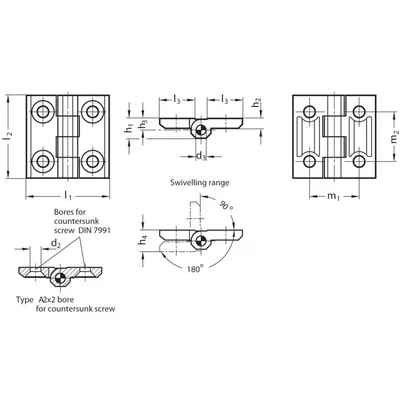

Ganter: GN237-ZD-60-60-A-SR Hinge ; Zinc Die Cast; Silver Compact and stable, type HD silver hinges. Features: -Type A: 2x2 bores for countersunk screws -Zinc die casting -Silver, RAL 9006, textured finish Hinges - Type ZD - Silver Material: ZD Zinc die casting plastic coated Black RAL 9005, textured finish. Silver RAL 9006, textured finish. Pin Stainless steel. German material No.1.4305 NI Stainless steel. German material No.1.4308/No.1.4408. Matt blasted. Pin Stainless steel. German material No.1.4571. MPN: 237-ZD-60-60-A-SR EAN: 4045525679627 GN237-ZD-60-60-A-SR Hinge ; Zinc Die Cast; Silver Attributes: D2: 8.3mm Fixing Method: Screw L2: 60mm L3: 26.0mm MFR Part No.: GN-237-NI-60-60-A-GS Material: Zinc Type: NI Stainless Steel d3: 8mm h1: 15.0mm h2: 8mm h3: 8.5mm h4 +0.5: 17.0mm l1: 60mm m1: 36mm m2: 36mm

Zoro Tools

Compact and stable, type HD silver hinges. Features: -Type A: 2x2 bores for countersunk screws -Zinc die casting -Silver, RAL 9006, textured finish
