Ganter GN617.1 8 AK NI Indexing Plunger; Stainless Steel

ManoMano

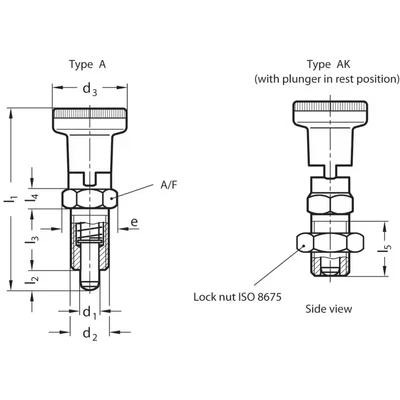

Ganter: GN617.1-8-AK-NI Indexing Plunger; Stainless Steel GN 617.1 indexing plungers with rest position are used for such applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90 degrees after being retracted. A notch keeps the plunger in this position. Features: -AISI 303 stainless steel -Chemically nickel plated plunger pin -Plastic (Polyamide PA) black matt, non removable knob MPN: 617.1-8-AK-NI EAN: 4045525316812 GN617.1-8-AK-NI Indexing Plunger; Stainless Steel Attributes: A/F: 19mm D1: 8mm D2: M16 x 1.5mm E: 21.9mm L3: 17mm L4: 8mm MFR Part No.: GN617.1-8-AK-NI Type: AK-NI Stainless Steel d3: 31mm l1: 75.5mm l2 min: 7mm l5 min: 23mm

Zoro Tools

GN 617.1 indexing plungers with rest position are used for such applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90 degrees after being retracted. A notch keeps the plunger in this position. Features: -AISI 303 stainless steel -Chemically nickel plated plunger pin -Plastic (Polyamide PA) black matt, non removable knob
