Ganter Normelemente GN 300 78 M8 SW Adjustable Clamping Lever Hand, Black, Grifflänge: 78mm Gewinde:

ManoMano

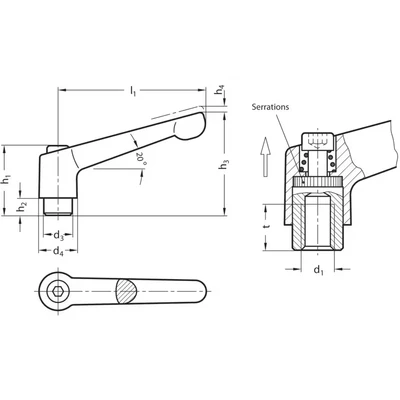

Ganter: GN300-78-M8-SW Adjustable Hand Lever; Black, Female Ideal for use whenever parts have to be clamped in a cOnfined space or in a particular lever position. The centre insert is connected to the lever via serrations which can easily be disengaged. Pulling the lever, disengages the serrations and allowing it to be swivelled to the ideal clamping position. On releasing the lever the serrations automatically re-engage. Features: -Zinc die casting -Plastic coated -Black, RAL 9005, textured finish -Steel bushing and retaining screw, blackened MPN: 300-78-M8-SW EAN: 4045525154674 GN300-78-M8-SW Adjustable Hand Lever; Black, Female Attributes: D1: M8mm MFR Part No.: GN300-78-M8-SW Type: SW (Threaded Insert) d3: 16.0mm d4: 21.0mm h1: 36.0mm h2: 8.0mm h3: 55mm l1: 78mm t min: 14mm

Zoro Tools

Ideal for use whenever parts have to be clamped in a confined space or in a particular lever position. The centre insert is connected to the lever via serrations which can easily be disengaged. Pulling the lever, disengages the serrations and allowing it to be swivelled to the ideal clamping position. On releasing the lever the serrations automatically re-engage. Features: -Zinc die casting -Plastic coated -Black, RAL 9005, textured finish -Steel bushing and retaining screw, blackened
