Ganter Normelemente GN 300 92 M12 40 SW Adjustable Clamping levers with Threaded Screw, Black, Textured matt, Gewinde: M12x40mm

ManoMano

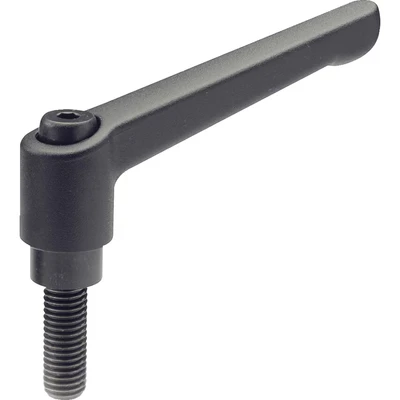

Ganter: GN300-92-M12-40-SW Adjustable Hand Lever; Black, Male Ideal for use whenever parts have to be clamped in a confined space or in a particular lever position. The centre insert is connected to the lever via serrations which can easily be disengaged. Pulling the lever, disengages the serrations and allowing it to be swivelled to the ideal clamping position. On releasing the lever the serrations automatically re-engage. Features: -Zinc die casting -Plastic coated -Black, RAL 9005, textured finish -Steel threaded stud and retaining screw, blackened -Tensile strength class 5.8 MPN: 300-92-M12-40-SW EAN: 4045525156821 GN300-92-M12-40-SW Adjustable Hand Lever; Black, Male Attributes: D1: M12mm MFR Part No.: GN300-45-M12-40-SW Type: SW (Threaded Insert) d3: 19.0mm d4: 24.0mm h1: 43.0mm h2: 11.0mm h3: 65mm l1: 92mm

Zoro Tools

Ideal for use whenever parts have to be clamped in a confined space or in a particular lever position. The centre insert is connected to the lever via serrations which can easily be disengaged. Pulling the lever, disengages the serrations and allowing it to be swivelled to the ideal clamping position. On releasing the lever the serrations automatically re-engage. Features: -Zinc die casting -Plastic coated -Black, RAL 9005, textured finish -Steel threaded stud and retaining screw, blackened -Tensile strength class 5.8
