Ganter Standard Elements Elasticated to Print Press On, Silver, GN 614 10 NI

ManoMano

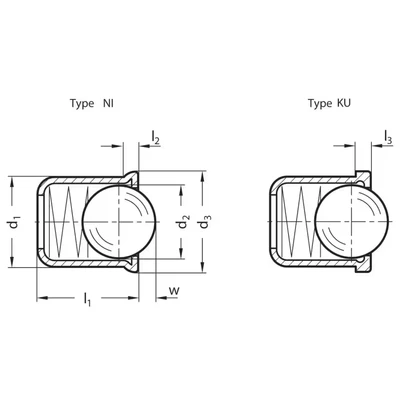

Ganter: GN614-10-NI Spring Plunger; All Stainless Steel Spring plungers GN 614 are used as detents as well as for push-on and push-off applications and ejectors. -Housing and ball constructed from NI stainless steel -AISI 305 / 420C -Housing sheet-metal -Ball hardened MPN: 614-10-NI EAN: 4045525312296 GN614-10-NI Spring Plunger; All Stainless Steel Attributes: D2: 8.5mm L2: 1.70mm MFR Part No.: GN614-10-NI Type: NI Stainless Steel d3: 11.0mm l1: 13mm

Amazon

Diameter: 10 mm, length: 13 mm; suspension travel w: 3, 3 mm, packaging unit: 5 pressure pieces spring pressure in N: 8, 5 (beginning) - 18, 5 (end) sleeve and ball: stainless steel, rust-proof 1.4303/1.43/1. .35411 Sleeve drawn from sheet; ball hardened compression springs: stainless steel, rust-proof 1.4568, Manufacturer: Ganter Normelemente

Zoro Tools

Spring plungers GN 614 are used as detents as well as for push-on and push-off applications and ejectors. -Housing and ball constructed from NI stainless steel -AISI 305 / 420C -Housing sheet-metal -Ball hardened
